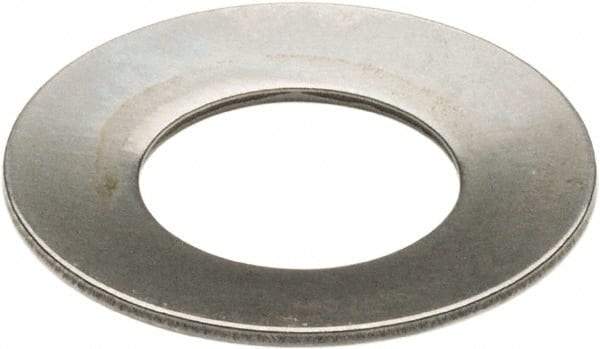

Associated Spring Raymond - 1" Bolt, Grade 1074 Steel, Oil Finish, Belleville Disc Spring - 0.18" High, 0.09" Thick
Item #: 61410692
Brand: Associated Spring Raymond
Model #: B3000090
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Bolt Size (Inch) | 1 |
| Bolt Size (mm) | 25.40 |
| System of Measurement | Inch |
| Material | Steel |
| Material Grade | 1074 |
| Thickness (mm) | 2.29 |
| Thickness (Decimal Inch) | 0.0900 |
| Overall Height (mm) | 4.57 |
| Overall Height (Decimal Inch) | 0.1800 |
| Deflection (Decimal Inch) | 0.0450 |
| Deflection (mm) | 1.14 |
| Minimum Inside Diameter (Decimal Inch) | 1.0000 |
| Minimum Inside Diameter (mm) | 25.40 |
| Maximum Outside Diameter (Decimal Inch) | 3.0000 |
| Maximum Outside Diameter (mm) | 76.20 |
| Load at Flat (Lb.) | 1244.00 |
| Load at Flat (N) | 5533.59 |
| Minimum Load at Deflection (Lb.) | 727.00 |
| Minimum Load at Deflection (N) | 3233.86 |
| Maximum Load at Deflection (Lb.) | 983.00 |
| Maximum Load at Deflection (N) | 4372.60 |
| Finish/Coating | Oil |
| Bolt Size (Decimal Inch) | 1 |
