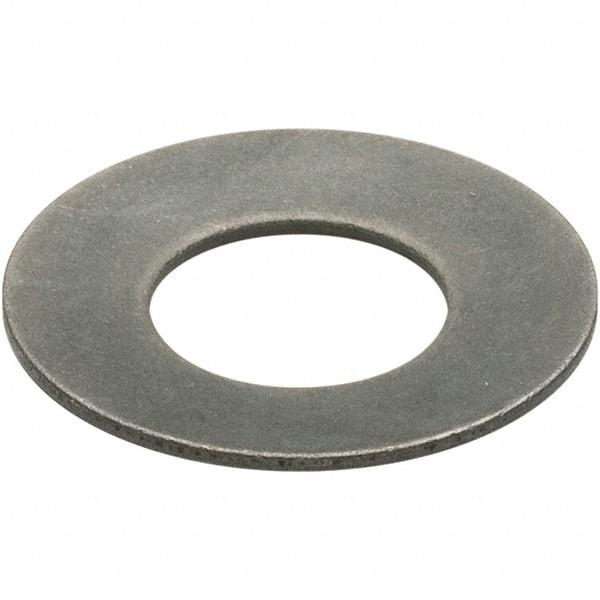

Associated Spring Raymond - 1.6142" ID, Grade 1075 High Carbon Steel, Oil Finish, Belleville Disc Spring - 3.1496" OD, 0.2638" High, 0.1969" Thick
Item #: 61403184
Brand: Associated Spring Raymond
Model #: BD080500
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 1.6142 |
| Inside Diameter (mm) | 41.00 |
| Material | High Carbon Steel |
| Material Grade | 1075 |
| Outside Diameter (Decimal Inch) | 3.1496 |
| Outside Diameter (mm) | 80.00 |
| Thickness (mm) | 5.00 |
| Thickness (Decimal Inch) | 0.1969 |
| Overall Height (mm) | 6.70 |
| Overall Height (Decimal Inch) | 0.2638 |
| Deflection (Decimal Inch) | 0.0504 |
| Deflection (mm) | 1.28 |
| Load at Deflection (Lb.) | 7576.06 |
| Load at Deflection (N) | 33700.00 |
| Finish/Coating | Oil |
| Fastener Standard | DIN 2093 |
