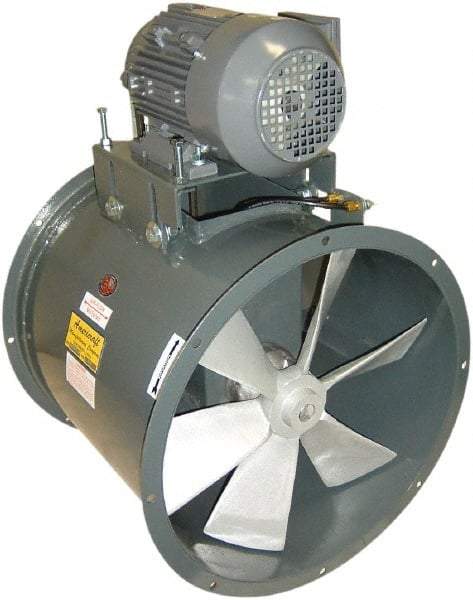

Americraft - 2 hp 24" Explosion Proof Wet Location Belt Drive Tube Axial Duct Fan - 9,760 CFM at 0 Static Pressure, 1,600 RPM, Three Phase
Item #: 61368924
Brand: Americraft
Model #: B24 2CS 3P XP
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Belt Drive |
| Horsepower | 2 HP |
| Fan Size In (Decimal Inch) | 24.0000 |
| RPM | 1600.000 |
| Phase | Three-Phase |
| Type of Enclosure | Explosion Proof; Wet Location |
| CFM Capacity @ 0 Static Pressure | 9760 |
| CFM Capacity @ 1/8 Static Pressure | 9114 |
| CFM Capacity @ 1/4 Static Pressure | 8830 |
| CFM Capacity @ 3/8 Static Pressure | 8460 |
| CFM Capacity @ 1/2 Static Pressure | 8090 |
| CFM Capacity @ 3/4 Static Pressure | 7000 |
| CFM Capacity @ 1 Static Pressure | 4400 |
