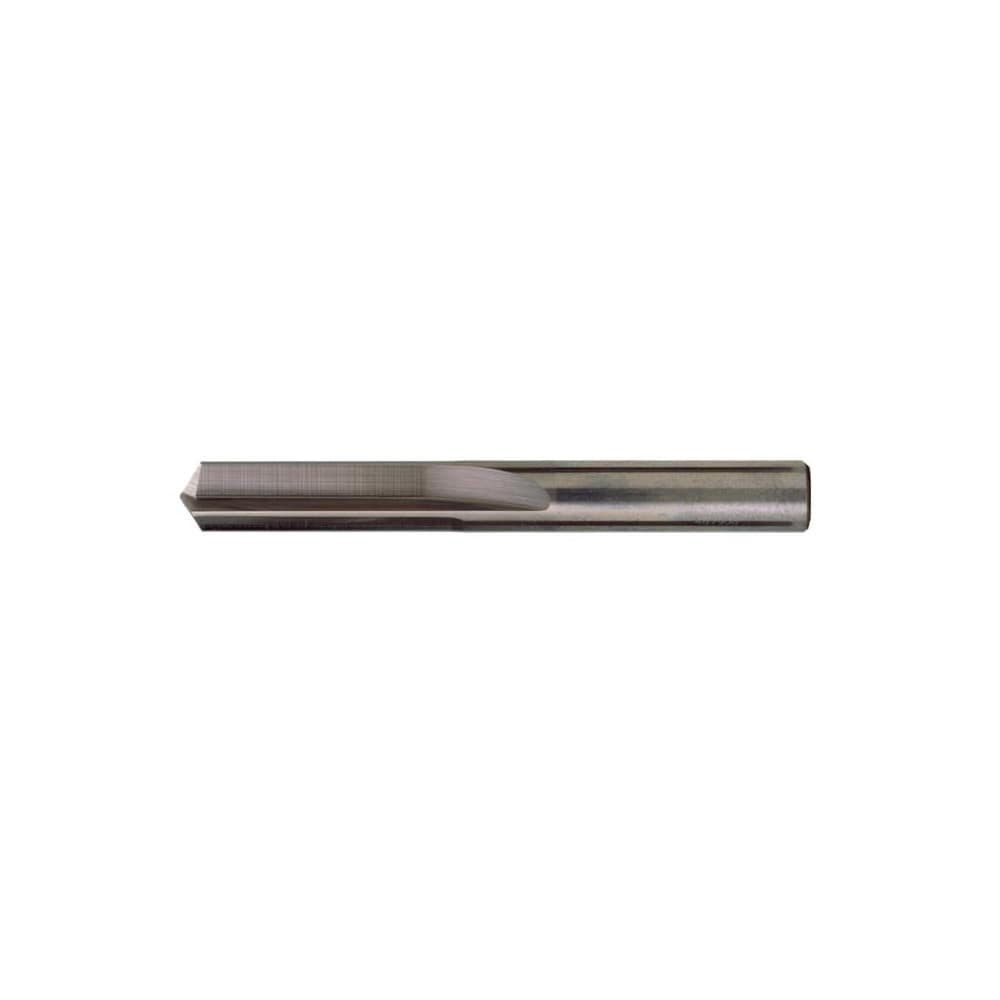

Screw Machine Length Drill Bit: Size #34, 135 deg Point, Solid Carbide
Item #: 82623158
Brand: Made in USA
Model #: B54166
Product Specifications
| Drill Bit Size (Wire) | #34 |
| Drill Bit Size (Decimal Inch) | 0.1110 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 135 |
| Coolant Through | No |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron; Steel |
| Point Type | Facet |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.1110 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Shank Diameter (mm) | 2.82 |
| Series | DM |
| Drill Length Type | Screw Machine |
| Shank Length (Inch) | 1 |
| Shank Length (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 25.40 |
| Drill Bit Diameter Tolerance | 0.000 to -0.0005 in |
| Flute Length (Inch) | 5/8 |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| UNSPSC Code | 23241635 |
| Country of Origin | VARIOUS |
