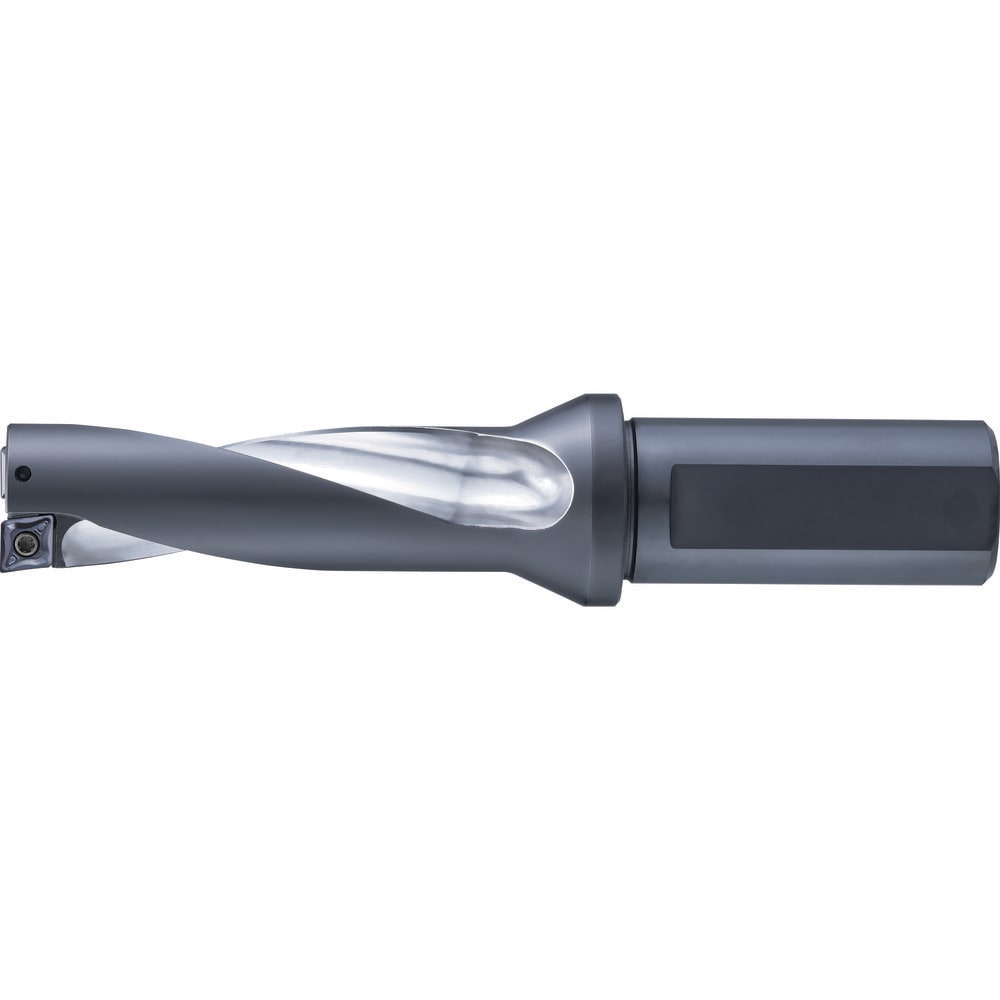

Indexable Insert Drill: PDZ0812FS100A06-3D, 13/16" Max Dia, 2-7/16" Max Depth, 3xD, 1" Shank Dia
Item #: 62084082
Brand: OSG
Model #: 52514004
Product Specifications
| Compatible Drill Style | PDZ |
| Maximum Drill Diameter (Inch) | 13/16 |
| Maximum Drill Diameter (Decimal Inch) | 0.8125 |
| Maximum Drill Depth (Inch) | 2-7/16 |
| Maximum Drill Depth (Decimal Inch) | 2.4375 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | ZPNT |
| Compatible Insert Size Code | 060204 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 5.3495 |
| Series | 52514 |
| Flute Length (Decimal Inch) | 2.4375 |
| Body Length | 135.88 |
| Body Length (Decimal Inch) | 3.1445 |
| Shank Length (Decimal Inch) | 2.2050 |
| Tool Application | Drilling; Plunging; Counterboring |
| Tool Performance | High Performance |
| UNSPSC Code | 23291536 |
| Insert Compatibility | ZPNT060204 |
| Collar Diameter (Decimal Inch) | 0.8125 |
| Coolant Through | Yes |
| Compatible Drill Style | PDZ |
| Maximum Drill Diameter (Inch) | 13/16 |
| Maximum Drill Diameter (Decimal Inch) | 0.8125 |
| Maximum Drill Depth (Inch) | 2-7/16 |
| Maximum Drill Depth (Decimal Inch) | 2.4375 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | ZPNT |
| Compatible Insert Size Code | 060204 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 5.3495 |
| Series | 52514 |
| Flute Length (Decimal Inch) | 2.4375 |
| Body Length | 135.88 |
| Body Length (Decimal Inch) | 3.1445 |
| Shank Length (Decimal Inch) | 2.2050 |
| Tool Application | Drilling; Plunging; Counterboring |
| Tool Performance | High Performance |
| UNSPSC Code | 23291536 |
| Insert Compatibility | ZPNT060204 |
| Collar Diameter (Decimal Inch) | 0.8125 |
| Coolant Through | Yes |
| MSC Part # | 62084082 |
| Mfr Part # | 52514004 |
| Country of Origin Country of Origin is subject to change | Japan |
