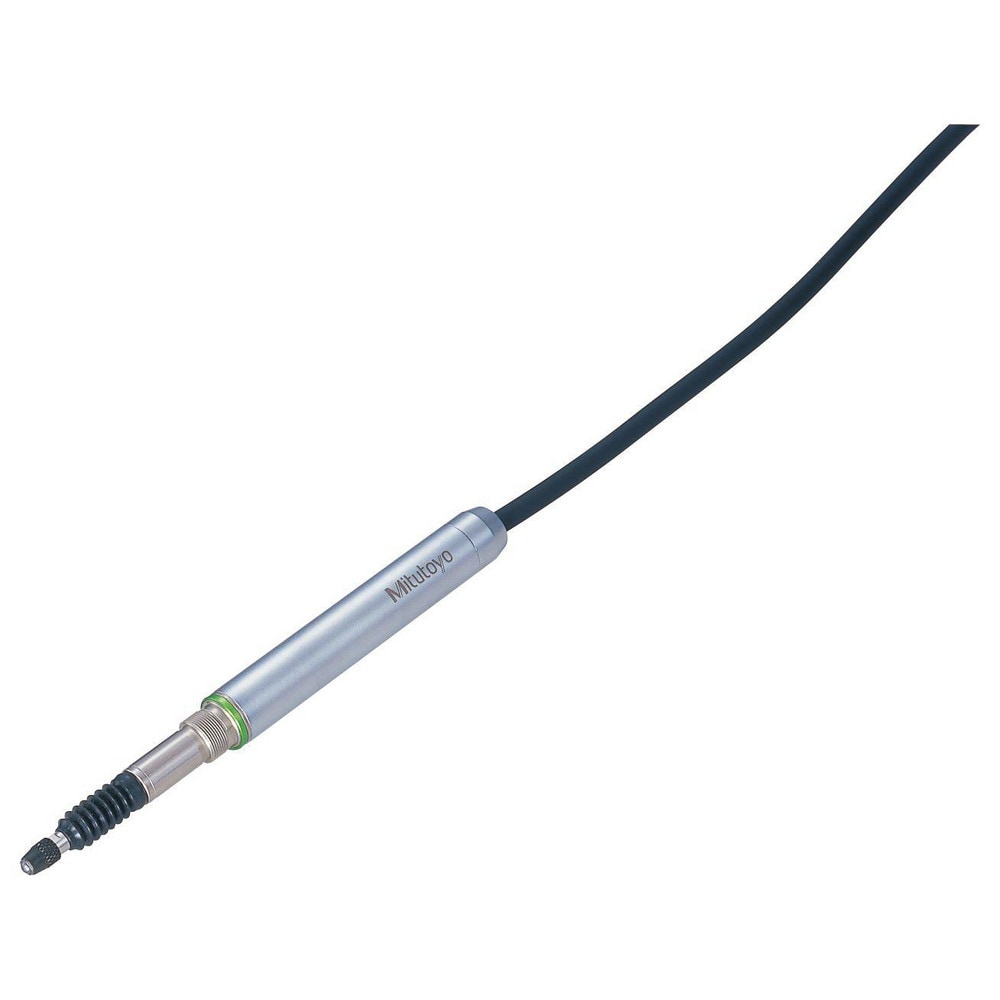

Remote Display Linear Gages; Maximum Measurement (Inch): 10.00; Maximum Measurement (mm): 10.00; Barrel Diameter (mm): 0.0000; Power Consumption: 0; Minimum Measurement: 0; Display Type: Digital
Item #: 40033763
Brand: Mitutoyo
Model #: 542-186
Product Specifications
| Maximum Measurement (Inch) | 10.00 |
| Maximum Measurement (mm) | 10.00 |
| Barrel Diameter (mm) | 0.0000 |
| Power Consumption | 0 |
| Minimum Measurement | 0 |
| Display Type | Digital |
| Repeatability | 1.5 ?m |
| Voltage | 0.00 V |
| Ip Rating | IP67G |
| Minimum Operating Temperature | 0 |
| Maximum Operating Temperature | 40 C |
| Number Of Mounting Holes | 0.000 |
| Mounting Hole Diameter | 0.0000 |
| Stem Diameter | 8 mm |
| Cable Length | 8.200 |
| Overall Length | 12.50 |
| Overall Width | 6 |
| Features | High-accuracy gage head suitable for in-line and in-laboratory use |
| Includes | output cable |
| Minimum Measurement (mm) | 0 |
| Accuracy (Decimal Inch) | ±(1.5+L/50)µm |
| Accuracy (micro m) | ±(1.5+L/50)µm |
| Accuracy (%) | ±(1.5+L/50)µm |
| Resolution (Decimal Inch) | 0.0010 mm |
| Resolution (mm) | 0.0010 mm |
| Downward Measuring Force (N) | 0.8N |
| Lateral Measuring Force (N) | 0.75N |
| UNSPSC Code | 41111905 |
