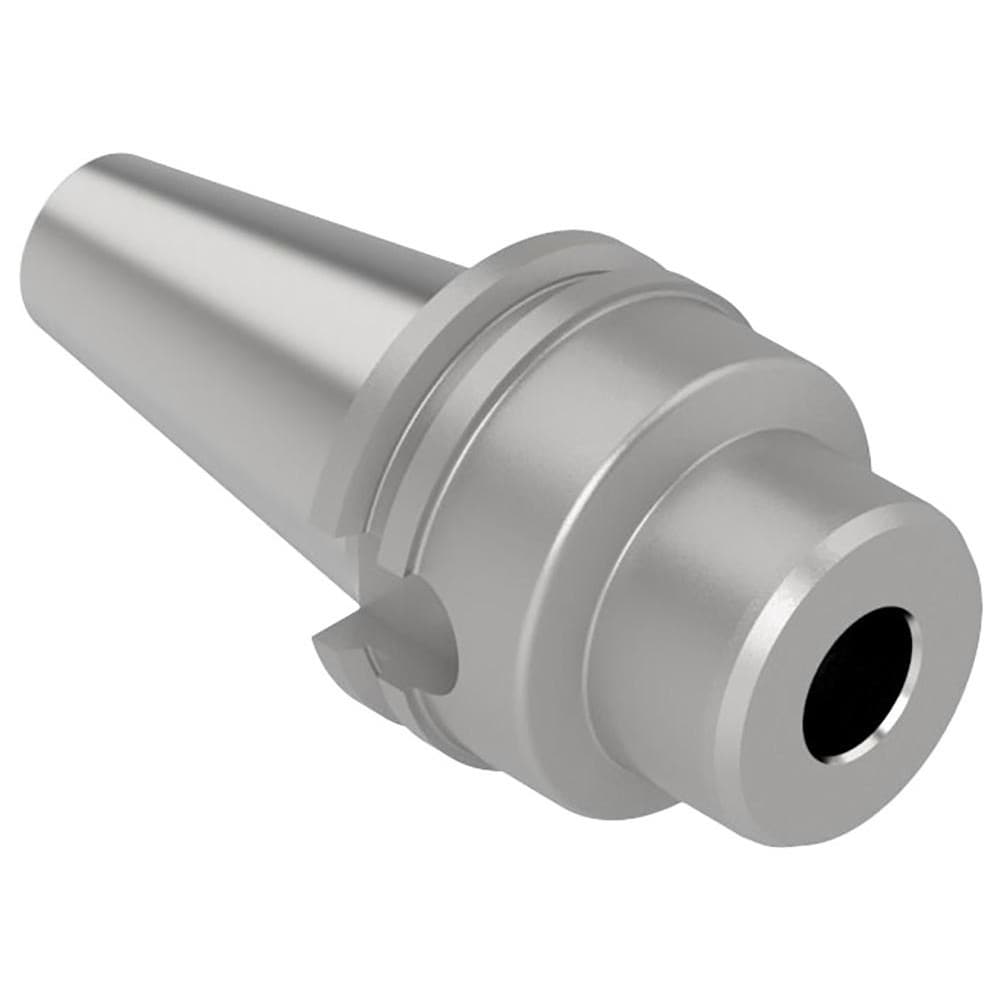

Hydraulic Tool Chuck: CAT40 Taper Shank, 3/4" Hole
Item #: 74009010
Brand: Allied Machine and Engineering
Model #: HYD-CV40I0750
Product Specifications
| Shank Type | Taper |
| Taper Size | CAT40 |
| Hole Diameter (Inch) | 3/4 |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Decimal Inch) | 1.7500 |
| Shank Diameter (mm) | 44.4500 |
| Shank Diameter (Inch) | 1-3/4 |
| Nose Diameter | 1-5/8 |
| Nose Diameter (Mm) ( - 2 Decimals) | 40.98 |
| Projection (mm) | 63.500 |
| Projection | 2-1/2 |
| Clamping Depth (mm) | 51.00 |
| Clamping Depth (Decimal Inch) | 2.0079 |
| Balanced To Rpm | 25000 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 5.1870 |
| Overall Length (mm) | 131.7500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 19.05 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.6134 |
| Projection (Decimal Inch) | 2.5000 |
| UNSPSC Code | 27112800 |
| Shank Type | Taper |
| Taper Size | CAT40 |
| Hole Diameter (Inch) | 3/4 |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Decimal Inch) | 1.7500 |
| Shank Diameter (mm) | 44.4500 |
| Shank Diameter (Inch) | 1-3/4 |
| Nose Diameter | 1-5/8 |
| Nose Diameter (Mm) ( - 2 Decimals) | 40.98 |
| Projection (mm) | 63.500 |
| Projection | 2-1/2 |
| Clamping Depth (mm) | 51.00 |
| Clamping Depth (Decimal Inch) | 2.0079 |
| Balanced To Rpm | 25000 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 5.1870 |
| Overall Length (mm) | 131.7500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 19.05 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.6134 |
| Projection (Decimal Inch) | 2.5000 |
| UNSPSC Code | 27112800 |
| MSC Part # | 74009010 |
| Mfr Part # | HYD-CV40I0750 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
