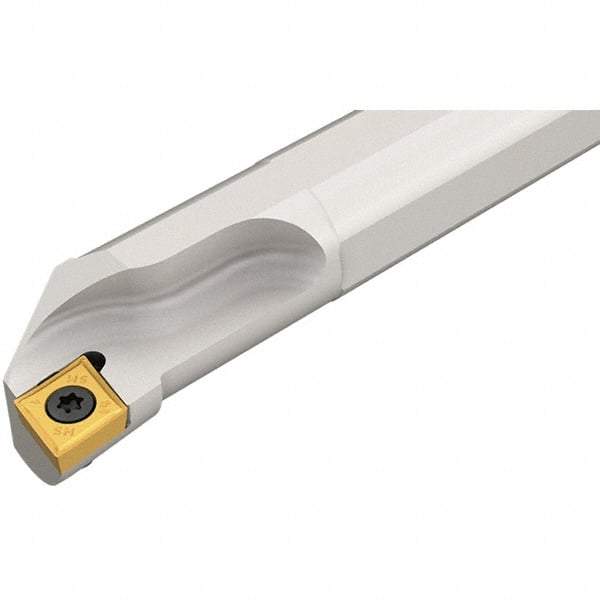

Iscar - 0.78" Min Bore Diam, 8" OAL, 5/8" Shank Diam, S-SCLC Indexable Boring Bar - 1.77" Max Bore Depth, CC.T 3 Insert, Screw Holding Method
Item #: 60923182
Brand: Iscar
Model #: 3600827
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SCLC |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 0.7800 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (Decimal Inch) | 1.7700 |
| Overall Length (Decimal Inch) | 8.0000 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Compatibility | CC.T 3 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.4400 |
| Rake Angle | -6 |
| Complete Insert Compatibility | CCGT 3-.004-AS; CCGT 3-0-AS; CCGT 3-1-AS; CCGT 3-2-AS; CCMT 3-0; CCMT 3-0-SM; CCMT 3-1; CCMT 3-1-14; CCMT 3-1-SM; CCMT 3-1T; CCMT 3-2; CCMT 3-2-14; CCMT 3-2-SM; CCMT 3-2T |
