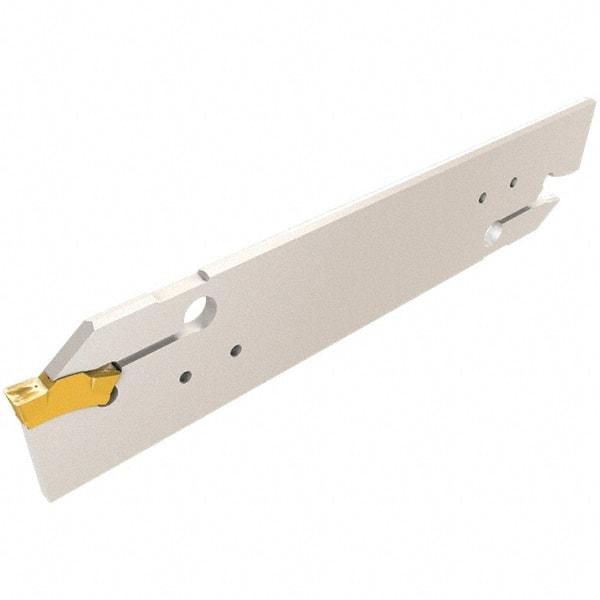

Iscar - 6 to 6.35mm Groove Width, 26mm Max Depth of Cut, Right Hand Cut, TGHN Indexable Grooving Blade - TGMF 6.. Insert Style, Series Top Grip
Item #: 60879103
Brand: Iscar
Model #: 2850041
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 6.00 |
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 26.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.0236 |
| Blade Style | TGHN |
| Series | Top Grip |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (Decimal Inch) | 0.2040 |
| Maximum Groove Width (mm) | 6.35 |
| Maximum Groove Width (Decimal Inch) | 0.2500 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Style | TGMF 6.. |
