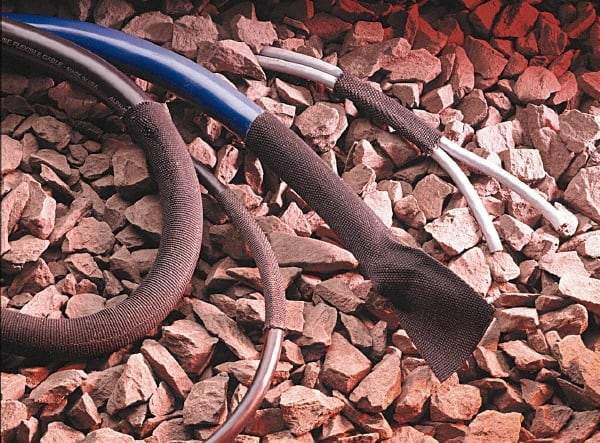

Alpha Wire - 2:1, Fabric Heat Shrink Electrical Tubing - Black
Item #: 60873684
Brand: Alpha Wire
Model #: FITFAB-4 BK007
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tubing Style | Heat Shrink |
| Material | Fabric |
| Shrink Ratio | 2:1 |
| Overall Length (Feet) | 50.00 |
| Color | Black |
| Inside Diameter Before Shrinking (mm) | 40.01 |
| Inside Diameter Before Shrinking (Decimal Inch) | 1.5750 |
| Inside Diameter After Shrinking (Decimal Inch) | 0.7870 |
| Inside Diameter After Shrinking (mm) | 19.99 |
| Shrink Temperature (F) | 176.00-275.00 |
| Resistance Features | Abrasion Resistant; Fungus Resistant; UV Resistant |
| Wall Thickness After Shrinking (mm) | 1.02 |
| Wall Thickness After Shrinking (Decimal Inch) | 0.0400 |
| Maximum Operating Temperature (F) | 257 |
| Minimum Operating Temperature (F) | -40 |
| Standards Met | California Proposition 65 Compliant; MVSS 302; REACH Regulation; RoHS Compliant; UL 1441; UL UZKX2 |
