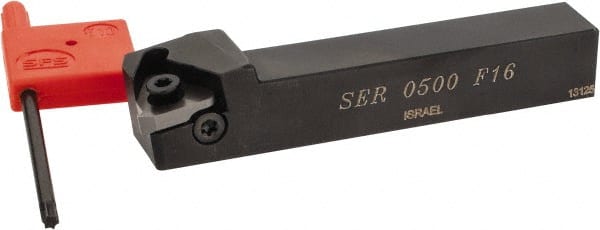

3-1/4″ OAL Right Hand External Indexable Threading Toolholder 1/2″ x 1/2″ Shank, Uses F 16 Inserts, SE Toolholder, Series SER
Item #: 60873007
Brand: Iscar
Model #: 3810073
Product Specifications
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Toolholder Style | SE |
| Insert Compatibility | F 16 |
| Insert Holding Method | Screw |
| Shank Height (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 3.2500 |
| Series | SER |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6300 |
| Insert Inscribed Circle (Inch) | 3/8 |
