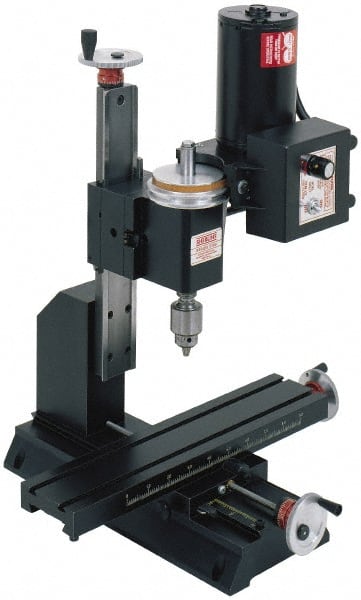

Knee Milling Machine: 0.5 hp, Electronic Variable Speed Control, 1 Phase 70 to 2,800 RPM, 1MT Spindle Taper
Item #: 60859501
Brand: Sherline
Model #: 5400
Product Specifications
| Maximum Spindle to Table Distance (Inch) | 8.0000 |
| Maximum Spindle to Table Distance (mm) | 203.20 |
| Maximum Spindle to Table Distance (Decimal Inch) | 8.0000 |
| Minimum Spindle Speed | 70 RPM |
| Maximum Spindle Speed | 2800 RPM |
| Phase | 1 |
| Left-Hand Head Tilt (Degrees) | 90 |
| Left-hand Head Tilt | 90.0 ? |
| Right-Hand Head Tilt (Degrees) | 90 |
| Right-hand Head Tilt | 90.0 ? |
| Cross Travel (Decimal Inch) | 5.0000 |
| Cross Travel | 5.0 in |
| Longitudinal Travel | 9.0 in |
| Longitudinal Travel (Decimal Inch) | 9.0000 |
| Knee Travel (Decimal Inch) | 6.2599 |
| Knee Travel | 6.2599 in |
| Horsepower | 0.50 |
| Voltage | 100; 240 |
| Table Length (Inch) | 13 |
| Table Width (Inch) | 2-3/4 |
| Spindle Speed Control | Electronic Variable Speed |
| Spindle Taper Size | 1MT |
| Number Of T-slots | 2 |
| Overall Height (Decimal Inch) | 20.7500 |
| Overall Height (Mm - 5 Decimals) | 527.00 |
| Overall Height (Inch) | 20-3/4 |
| Overall Length (Inch) | 15 |
| Overall Length (Decimal Inch) | 15.0000 |
| Overall Length (mm) | 381.00 |
| Overall Depth (Inch) | 14 |
| Overall Depth (Inch) | 14.0000 |
| Overall Depth (Mm) | 355.60 |
