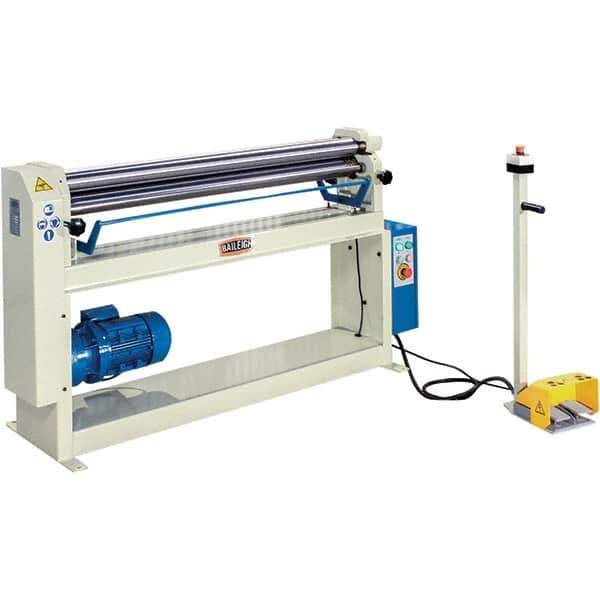

Baileigh - Slip Rolls Machine Type: Floor Power Type: Electric
Item #: 60690963
Brand: Baileigh
Model #: 1007336
Exact Tooling IR#: 04
Product Specifications
Slip Rolls; Machine Type: Floor ; Power Type: Electric ; Maximum Forming Width (mm): 1,295.00 ; Maximum Forming Width (Inch): 51 ; Maximum Mild Steel Capacity (mm): 1.50 ; Maximum Mild Steel Capacity (Decimal Inch): 0.0600
| Machine Type | Floor |
| Power Type | Electric |
| Maximum Forming Width (mm) | 1295.00 |
| Maximum Forming Width (Inch) | 51 |
| Maximum Mild Steel Capacity (mm) | 1.50 |
| Maximum Mild Steel Capacity (Decimal Inch) | 0.0600 |
| Maximum Mild Steel Capacity (Gauge) | 16 |
| Slip Roll Diameter (mm) | 76.20 |
| Slip Roll Diameter (Inch) | 3 |
| Number of Wire Grooves | 3 |
| Phase | 1 |
| Horsepower (HP) | 1 |
| Voltage | 110 |
| Overall Width (mm) | 1778.00 |
| Overall Width (Inch) | 70 |
| Overall Height (mm) | 1118 |
| Overall Height (Inch) | 44 |
