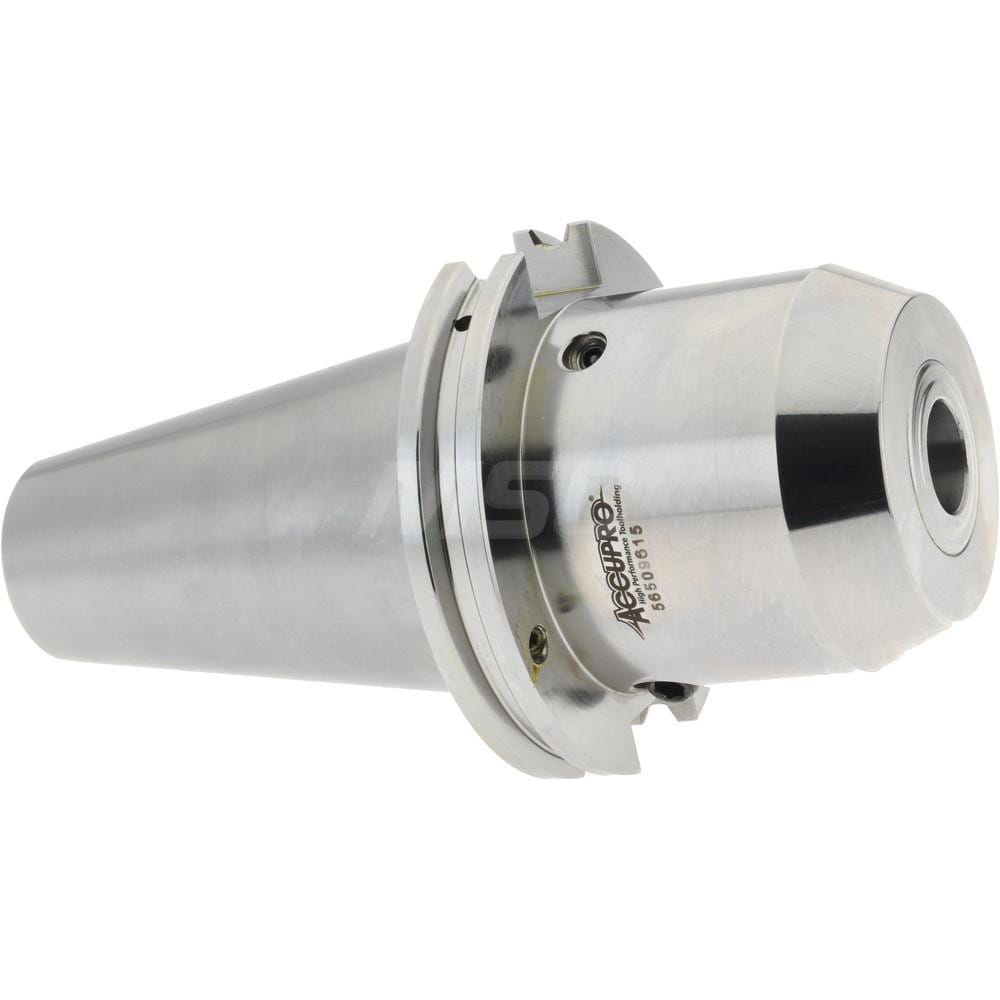

Hydraulic Tool Chuck: CAT50 Taper Shank, 3/4" Hole
Item #: 67203851
Brand: Accupro
Model #: 1527340
Product Specifications
| Shank Type | Taper |
| Connection Size | CAT50 |
| Taper Size | CAT50 |
| Hole Diameter (Inch) | 3/4 |
| Nose Diameter | 1-3/8 |
| Nose Diameter (Mm) ( - 2 Decimals) | 35.02 |
| Projection (mm) | 81.000 |
| Projection | 3-3/16 |
| Clamping Depth (mm) | 51.00 |
| Balanced To Rpm | 25000 |
| TIR (Decimal Inch) | 0.000010 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 5.9400 |
| Body Diameter (Decimal Inch) | 1.9291 |
| Additional Information | Replaces SKU 56509615 |
| UNSPSC Code | 27112800 |
| Shank Type | Taper |
| Connection Size | CAT50 |
| Taper Size | CAT50 |
| Hole Diameter (Inch) | 3/4 |
| Nose Diameter | 1-3/8 |
| Nose Diameter (Mm) ( - 2 Decimals) | 35.02 |
| Projection (mm) | 81.000 |
| Projection | 3-3/16 |
| Clamping Depth (mm) | 51.00 |
| Balanced To Rpm | 25000 |
| TIR (Decimal Inch) | 0.000010 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 5.9400 |
| Body Diameter (Decimal Inch) | 1.9291 |
| Additional Information | Replaces SKU 56509615 |
| UNSPSC Code | 27112800 |
| MSC Part # | 67203851 |
| Mfr Part # | 1527340 |
