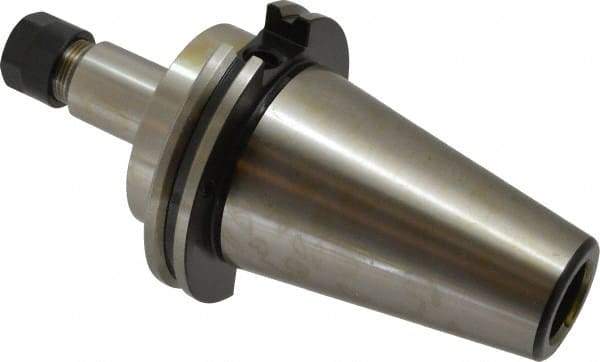

Parlec - 0.5mm to 10mm Capacity, 4.12" Projection, CAT50 Taper Shank, ER16 Collet Chuck - 8.12" OAL
Item #: 60636438
Brand: Parlec
Model #: C50-16ERP412
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Projection (Decimal Inch) | 4.1200 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0197 |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.3937 |
| Overall Length (Decimal Inch) | 8.1200 |
| Actuator Type | Wrench |
| Type | ER Coolant Collet |
| Nose Diameter (Decimal Inch) | 1.1100 |
| PSC Code | 5136 |
| Balanced to (RPM) | 20000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.1100 |
