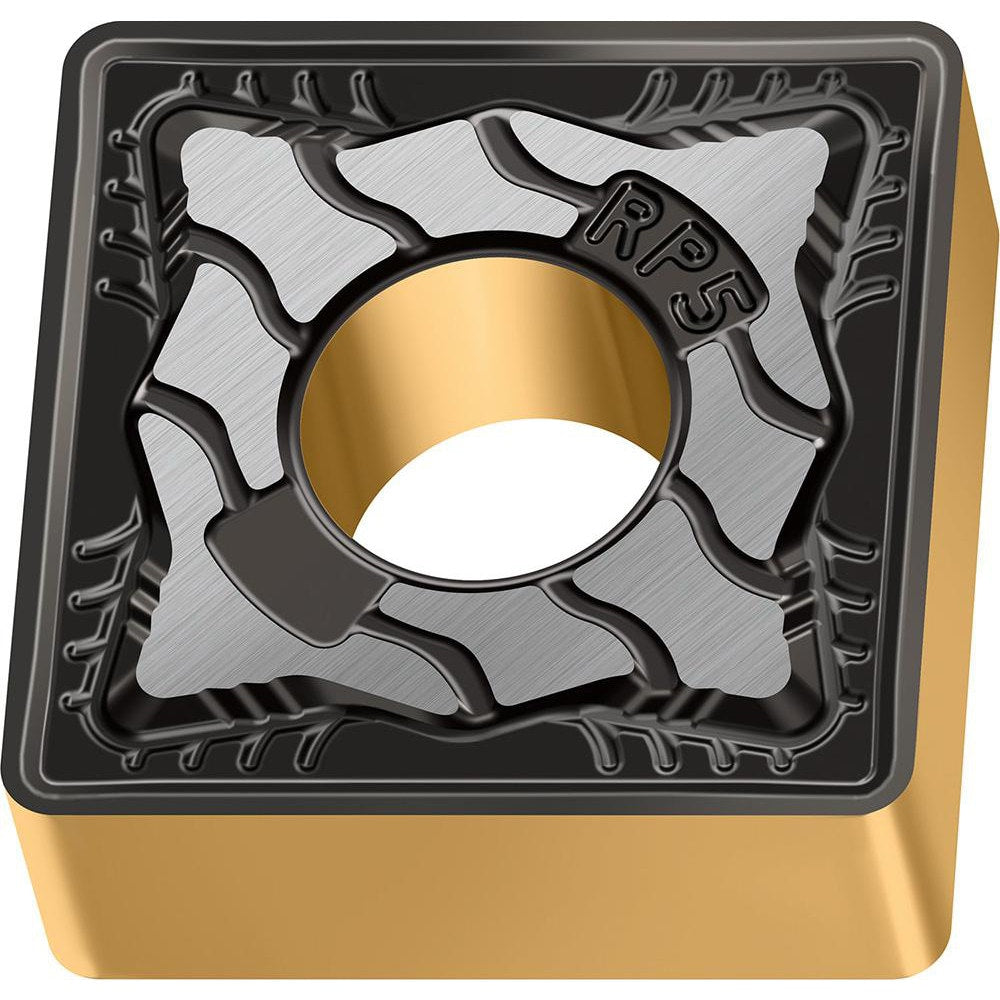

Turning Insert: SNMG543RP5 WPP05G, Carbide
Item #: 91731745
Brand: Walter
Model #: 8411473
Product Specifications
| ANSI Insert Code | SNMG543 |
| ISO Insert Code | SNMG150612 |
| Relief Angle | 0.000 |
| Insert Style | SNMG |
| Corner Radius (mm) | 1.20 |
| Included Angle | 90.00 |
| Manufacturer Grade | WPP05G |
| Coating/Finish | TiCN+Al2O3+(TiN) |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 6.35 |
| Series | SNMG |
| Inscribed Circle (mm) | 15.88 |
| Insert Material | Carbide |
| Insert Shape | Square |
| Chip Breaker Operation | Roughing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance; Steel (P) - High Wear-Resistance |
| Side Clearance | Negative |
| Number Of Cutting Edges | 8 |
| Insert Shape Code | S |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.3500 |
| Maximum Depth of Cut (mm) | 8.00 |
| Insert Holding Method | Screw |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Length (mm) | 15.88 |
| Manufacturers Catalog Number | SNMG150612-RP5 WPP05G |
| Chip Breaker | RP5 |
| Width (mm - 2 Decimals) | 15.88 |
| ANSI Size Code | 543 |
| ISO Size Code | 150612 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 15 |
| Country of Origin | Germany |
