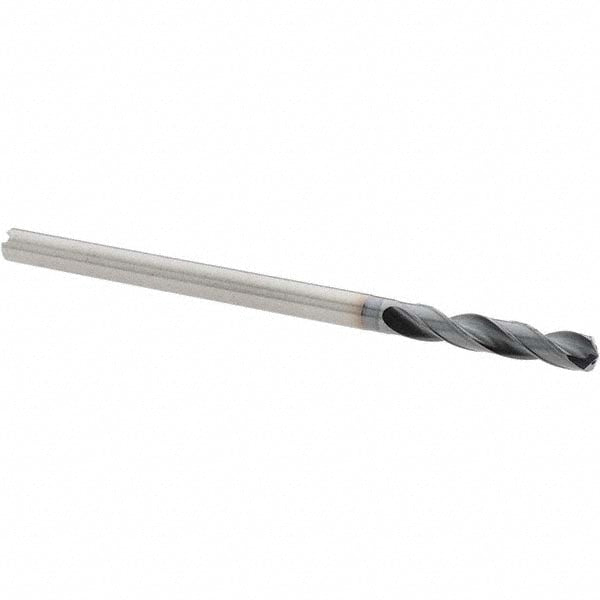

Screw Machine Length Drill Bit: 4.00 mm Dia, 135 deg Point, Solid Carbide
Item #: 53969622
Brand: Sumitomo
Model #: 5VHY016
Product Specifications
| Drill Bit Size (mm) | 4.00 |
| Drill Bit Size (Decimal Inch) | 0.1575 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 135 |
| Coolant Through | Yes |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Point Type | Web-Thinned |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 72.00 |
| Overall Length (Decimal Inch) | 2.8346 |
| Shank Diameter (mm) | 4.00 |
| Series | MDW-HGS |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | DEX |
| Number of Margins | 2 |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.6811 |
| Maximum Drilling Depth (mm) | 17.30 |
| Shank Length (Decimal Inch) | 1.8898 |
| Shank Length (mm) | 48.00 |
| Drill Point Length (mm) | 0.83 |
| Drill Point Length (Decimal Inch) | 0.0315 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | h8 |
| Flute Length (Decimal Inch) | 0.8858 |
| Flute Length (mm) | 22.50 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| Drill Bit Size Range (mm) | 3.50 - 5.00 |
| UNSPSC Code | 23241635 |
| Drill Bit Size (mm) | 4.00 |
| Drill Bit Size (Decimal Inch) | 0.1575 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 135 |
| Coolant Through | Yes |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Point Type | Web-Thinned |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 72.00 |
| Overall Length (Decimal Inch) | 2.8346 |
| Shank Diameter (mm) | 4.00 |
| Series | MDW-HGS |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | DEX |
| Number of Margins | 2 |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.6811 |
| Maximum Drilling Depth (mm) | 17.30 |
| Shank Length (Decimal Inch) | 1.8898 |
| Shank Length (mm) | 48.00 |
| Drill Point Length (mm) | 0.83 |
| Drill Point Length (Decimal Inch) | 0.0315 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | h8 |
| Flute Length (Decimal Inch) | 0.8858 |
| Flute Length (mm) | 22.50 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| Drill Bit Size Range (mm) | 3.50 - 5.00 |
| UNSPSC Code | 23241635 |
| MSC Part # | 53969622 |
| Mfr Part # | 5VHY016 |
| Country of Origin Country of Origin is subject to change | Japan |
