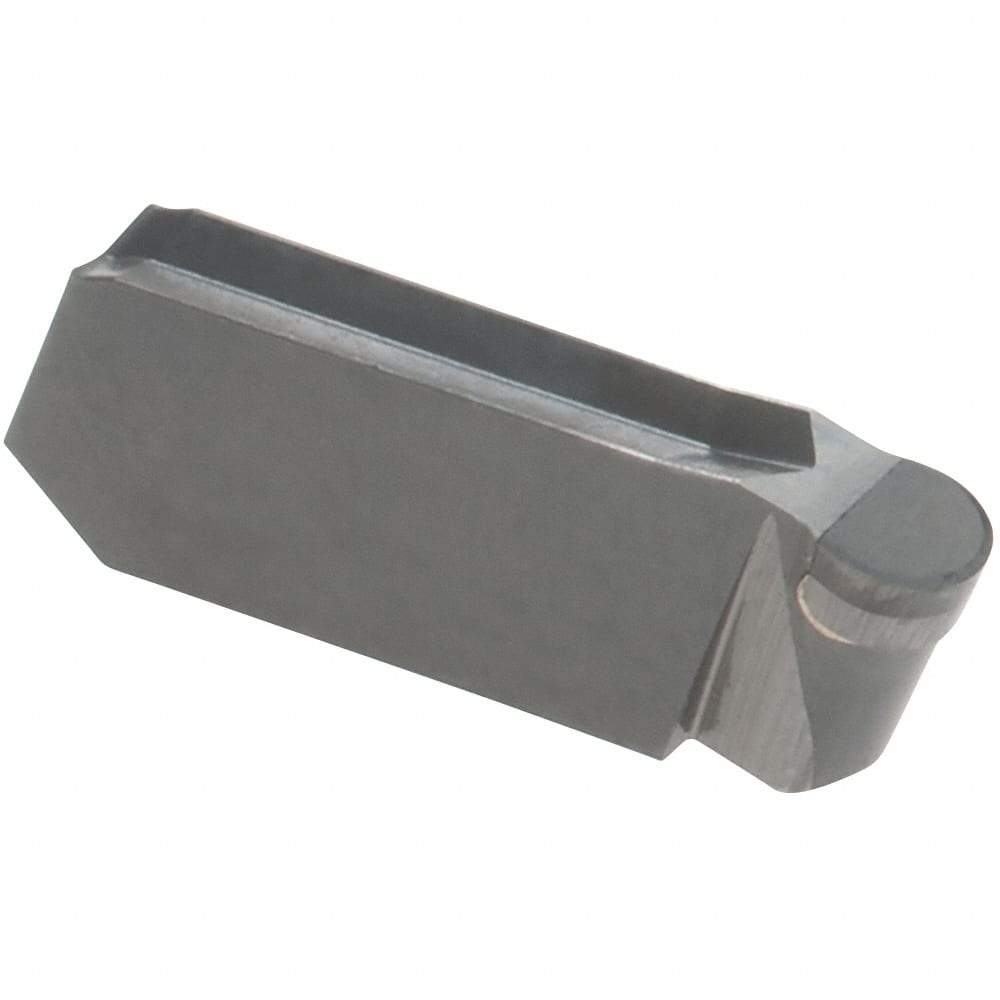

Iscar - 300K150GITM Grade IB50, 3mm Cutting Width CBN Grooving Insert - 0.3mm Max Depth of Cut, Neutral, 1.5mm Corner Radius, Uncoated
Item #: 60496825
Brand: Iscar
Model #: 6402563
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | GITM |
| Insert Size | 300K150 |
| Material | CBN |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 0.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.0120 |
| Manufacturer's Grade | IB50 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing; Grooving; Profiling |
| Corner Radius (mm) | 1.50 |
| Corner Radius (Decimal Inch) | 0.0590 |
| Overall Length (mm) | 14.99 |
| Overall Length (Decimal Inch) | 0.5900 |
| Series | Cut Grip |
| ISO Number | GITM 3.00K-1.50 |
| Manufacturers Catalog Number | GITM 3.00K-1.50 |
