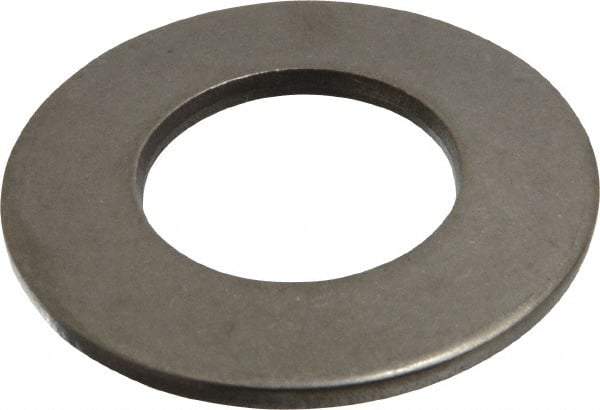

Made in USA - 0.803" ID, Grade 17-7 PH Stainless Steel, Belleville Disc Spring - 1.57" OD, 0.136" High, 0.098" Thick
Item #: 60482296
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 0.8030 |
| Inside Diameter (mm) | 20.40 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH |
| Outside Diameter (Decimal Inch) | 1.5700 |
| Outside Diameter (mm) | 39.88 |
| Thickness (mm) | 2.49 |
| Thickness (Decimal Inch) | 0.0980 |
| Overall Height (mm) | 3.45 |
| Overall Height (Decimal Inch) | 0.1360 |
| Deflection (Decimal Inch) | 0.015 to 0.023 |
| Deflection (mm) | 0.386 to 0.579 |
| Deflection to Flat (Decimal Inch) | 0.0380 |
| Deflection to Flat (mm) | 0.97 |
| Load at Deflection (Lb.) | 2226.00 |
| Minimum Load at Deflection (Lb.) | 1304.00 |
| Minimum Load at Deflection (N) | 5800.00 |
| Maximum Load at Deflection (Lb.) | 1902.00 |
| Maximum Load at Deflection (N) | 8460.00 |
| Hardness | Rockwell C38 |
| Fastener Standard | DIN 2092; DIN 2093 |
