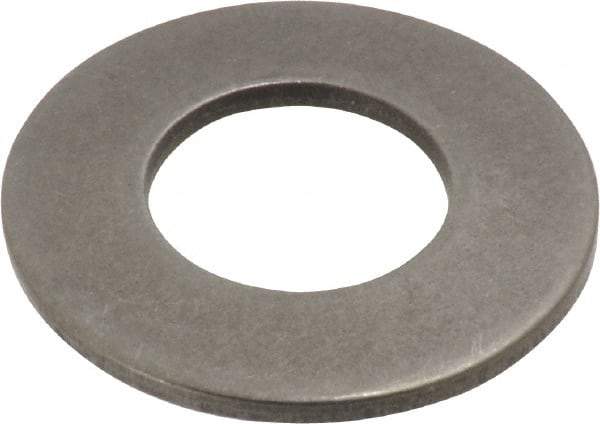

Made in USA - 0.48" ID, Grade 17-7 PH Stainless Steel, Belleville Disc Spring - 0.984" OD, 0.081" High, 0.059" Thick
Item #: 60482171
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 0.4800 |
| Inside Diameter (mm) | 12.19 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH |
| Outside Diameter (Decimal Inch) | 0.9840 |
| Outside Diameter (mm) | 24.99 |
| Thickness (mm) | 1.50 |
| Thickness (Decimal Inch) | 0.0590 |
| Overall Height (mm) | 2.06 |
| Overall Height (Decimal Inch) | 0.0810 |
| Deflection (Decimal Inch) | 0.010 to 0.014 |
| Deflection (mm) | 0.249 to 0.361 |
| Deflection to Flat (Decimal Inch) | 0.0220 |
| Deflection to Flat (mm) | 0.56 |
| Load at Deflection (Lb.) | 655.00 |
| Minimum Load at Deflection (Lb.) | 446.00 |
| Minimum Load at Deflection (N) | 1984.00 |
| Maximum Load at Deflection (Lb.) | 629.00 |
| Maximum Load at Deflection (N) | 2798.00 |
| Hardness | Rockwell C38 |
| Fastener Standard | DIN 2092; DIN 2093 |
