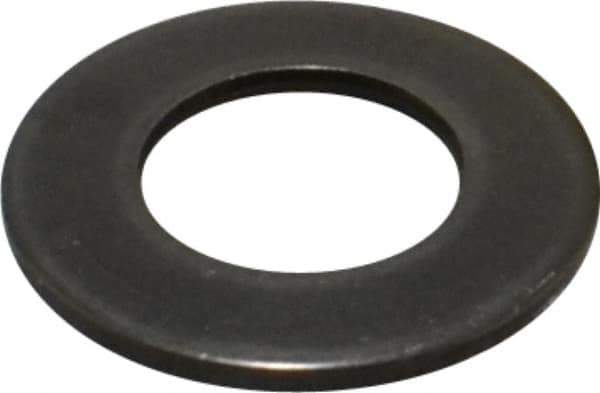

Made in USA - 0.283" ID, Grade 17-7 PH Stainless Steel, Belleville Disc Spring - 0.551" OD, 0.043" High, 0.032" Thick
Item #: 60482056
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 0.2830 |
| Inside Diameter (mm) | 7.19 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH |
| Outside Diameter (Decimal Inch) | 0.5510 |
| Outside Diameter (mm) | 14.00 |
| Thickness (mm) | 0.81 |
| Thickness (Decimal Inch) | 0.0320 |
| Overall Height (mm) | 1.09 |
| Overall Height (Decimal Inch) | 0.0430 |
| Deflection (Decimal Inch) | 0.006 to 0.008 |
| Deflection (mm) | 0.152 to 0.213 |
| Deflection to Flat (Decimal Inch) | 0.0120 |
| Deflection to Flat (mm) | 0.30 |
| Load at Deflection (Lb.) | 179.00 |
| Minimum Load at Deflection (Lb.) | 134.00 |
| Minimum Load at Deflection (N) | 594.00 |
| Maximum Load at Deflection (Lb.) | 182.00 |
| Maximum Load at Deflection (N) | 811.00 |
| Hardness | Rockwell C38 |
| Fastener Standard | DIN 2092; DIN 2093 |
