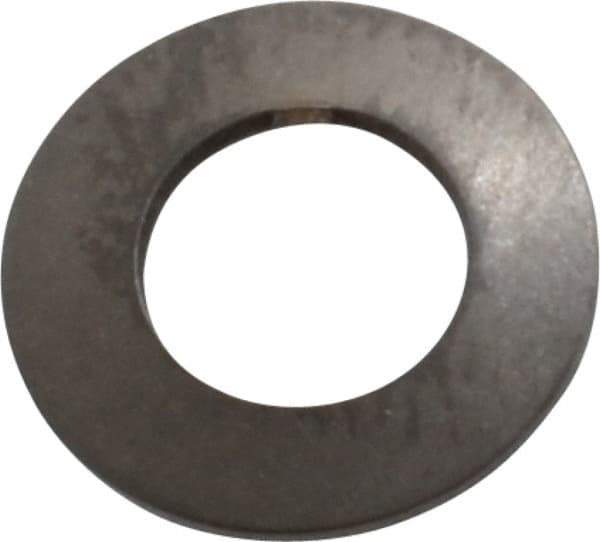

Made in USA - 0.205" ID, Grade 17-7 PH Stainless Steel, Belleville Disc Spring - 0.394" OD, 0.03" High, 0.02" Thick
Item #: 60482015
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 0.2050 |
| Inside Diameter (mm) | 5.21 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH |
| Outside Diameter (Decimal Inch) | 0.3940 |
| Outside Diameter (mm) | 10.01 |
| Thickness (mm) | 0.51 |
| Thickness (Decimal Inch) | 0.0200 |
| Overall Height (mm) | 0.76 |
| Overall Height (Decimal Inch) | 0.0300 |
| Deflection (Decimal Inch) | 0.005 to 0.007 |
| Deflection (mm) | 0.127 to 0.188 |
| Deflection to Flat (Decimal Inch) | 0.0100 |
| Deflection to Flat (mm) | 0.25 |
| Load at Deflection (Lb.) | 80.00 |
| Minimum Load at Deflection (Lb.) | 55.00 |
| Minimum Load at Deflection (N) | 246.00 |
| Maximum Load at Deflection (Lb.) | 79.00 |
| Maximum Load at Deflection (N) | 350.00 |
| Hardness | Rockwell C38 |
| Fastener Standard | DIN 2092; DIN 2093 |
