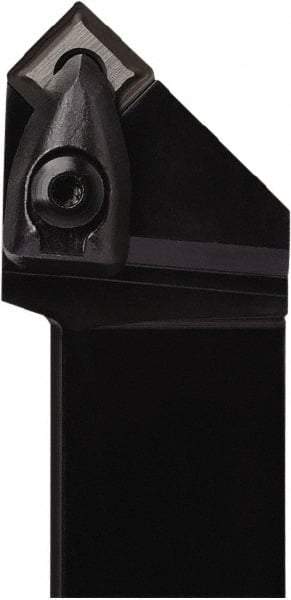

Seco - DSSN, Left Hand Cut, 45° Lead Angle, 16mm Shank Height x 16mm Shank Width, Negative Rake Indexable Turning Toolholder - 107.1mm OAL, SNM..0903.. Insert Compatibility, Series Dual Clamp
Item #: 60181880
Brand: Seco
Model #: 34264
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DSSN |
| Rake | Negative |
| Rake Angle | -8 |
| Series | Dual Clamp |
| Lead Angle | 45 |
| Shank Width (mm) | 16.00 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 107.10 |
| Overall Length (Decimal Inch) | 4.2165 |
| Insert Compatibility | SNM..0903.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 14.10 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5551 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2598 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Toolholder Material | Steel |
