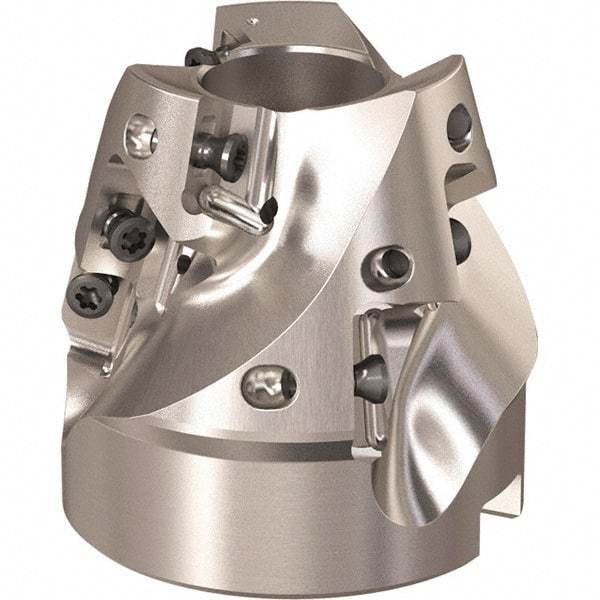

Seco - 51.5mm Cut Diam, 22mm Arbor Hole, 31mm Max Depth of Cut, 75° Indexable Chamfer & Angle Face Mill - 9 Inserts, XO.. 1204 Insert, Right Hand Cut, 9 Flutes, Through Coolant, Series R220.49
Item #: 60151107
Brand: Seco
Model #: 45952
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 51.50 |
| Cutting Diameter (Decimal Inch) | 2.0276 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 75 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | XO.. 1204 |
| Series | R220.49 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 31.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.2205 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Number of Flutes | 9 |
| Hub Diameter (Decimal Inch) | 1.8504 |
| Hub Diameter (mm) | 47.00 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Maximum Body Diameter (Decimal Inch) | 1.3780 |
| Maximum RPM | 14400 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | XOEX 120402R-M07; XOEX 120404FR-E06; XOEX 120404R-M07; XOEX 120408FR-E06; XOEX 120408R-M07; XOEX 120408ZZR-M07; XOEX 120416FR-E06; XOEX 120416R-M07; XOEX 120420FR-E06; XOEX 120424R-M07; XOEX 120431FR-E06; XOEX 120431R-M07; XOEX 120440R-M07; XOEX 120450R-M |
