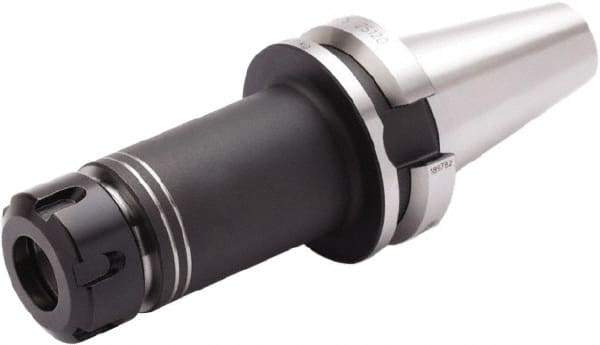

Seco - 0.118" to 1.024" Capacity, 3.937" Projection, BT50 Taper Shank, ER40 Collet Chuck - 7.945" OAL
Item #: 60138377
Brand: Seco
Model #: 66036
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER40 |
| Shank Type | Taper Shank |
| Taper Size | BT50 |
| Projection (Decimal Inch) | 3.9370 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.1180 |
| Maximum Collet Capacity (Decimal Inch) | 1.0240 |
| Overall Length (Decimal Inch) | 7.9450 |
| Nose Diameter (Decimal Inch) | 2.4800 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0004 |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (Decimal Inch) | 1.9690 |
