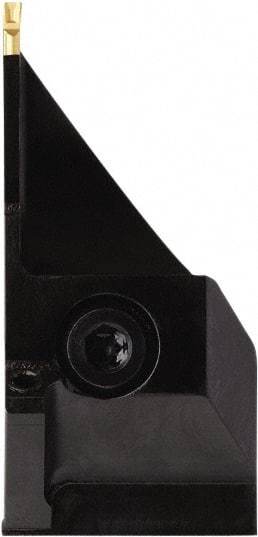

Seco - CFS, External, Left Hand, 33.53mm Max Depth of Cut, 2mm Min Groove Width, Indexable Grooving Tool Holder - LC.. 1902.. Insert Compatibility, 3/4" Shank Height, 3/4" Shank Width, 6" OAL
Item #: 60137098
Brand: Seco
Model #: 65707
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.3200 |
| Maximum Depth of Cut (mm) | 33.53 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Minimum Groove Width (mm) | 2.00 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | CFS |
| Insert Compatibility | LC.. 1902.. |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Series | Jetstream; Multi-Directional Turning (MDT) |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Insert Seat Size | 2 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7500 |
| Head Length (Decimal Inch) | 1.5000 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | LCMF 190202-0200-FT; LCMF 190202-0200-FTL6; LCMF 190202-0200-FTR6 |
