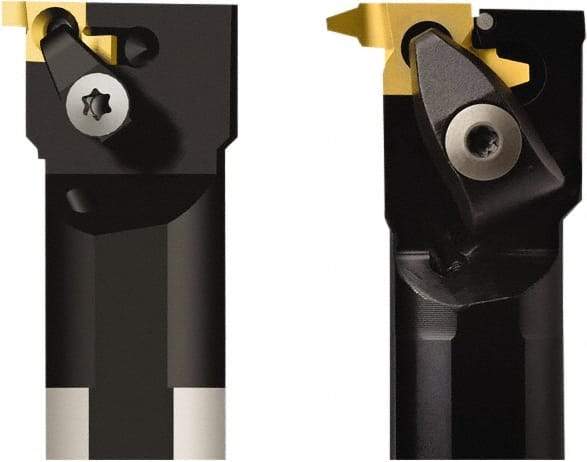

Seco - CN, Internal, Left Hand, 4.2mm Max Depth of Cut, 3 to 4.2mm Groove Width, Indexable Grooving Tool Holder - 14NL Insert Compatibility, 18mm Shank Height, 19.99mm Shank Width, 170mm OAL, Through Coolant
Item #: 60132479
Brand: Seco
Model #: 04266
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1654 |
| Maximum Depth of Cut (mm) | 4.20 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 4.20 |
| Maximum Groove Width (Decimal Inch) | 0.1654 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6930 |
| Toolholder Style | CN |
| Insert Compatibility | 14NL |
| Shank Height (mm) | 18.00 |
| Shank Height (Decimal Inch) | 0.7087 |
| Shank Width/Diameter (mm) | 19.99 |
| Shank Width/Diameter (Decimal Inch) | 0.7870 |
| Series | Snap Tap |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (Decimal Inch) | 0.5910 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Complete Insert Compatibility | 14NL 1.6ST; 14NL 2.4DY; 14NL 3.0FG; 14NL 3.2FG; 14NL 3.4FG; 14NL 4.0FG; 14NL 4.2FG |
