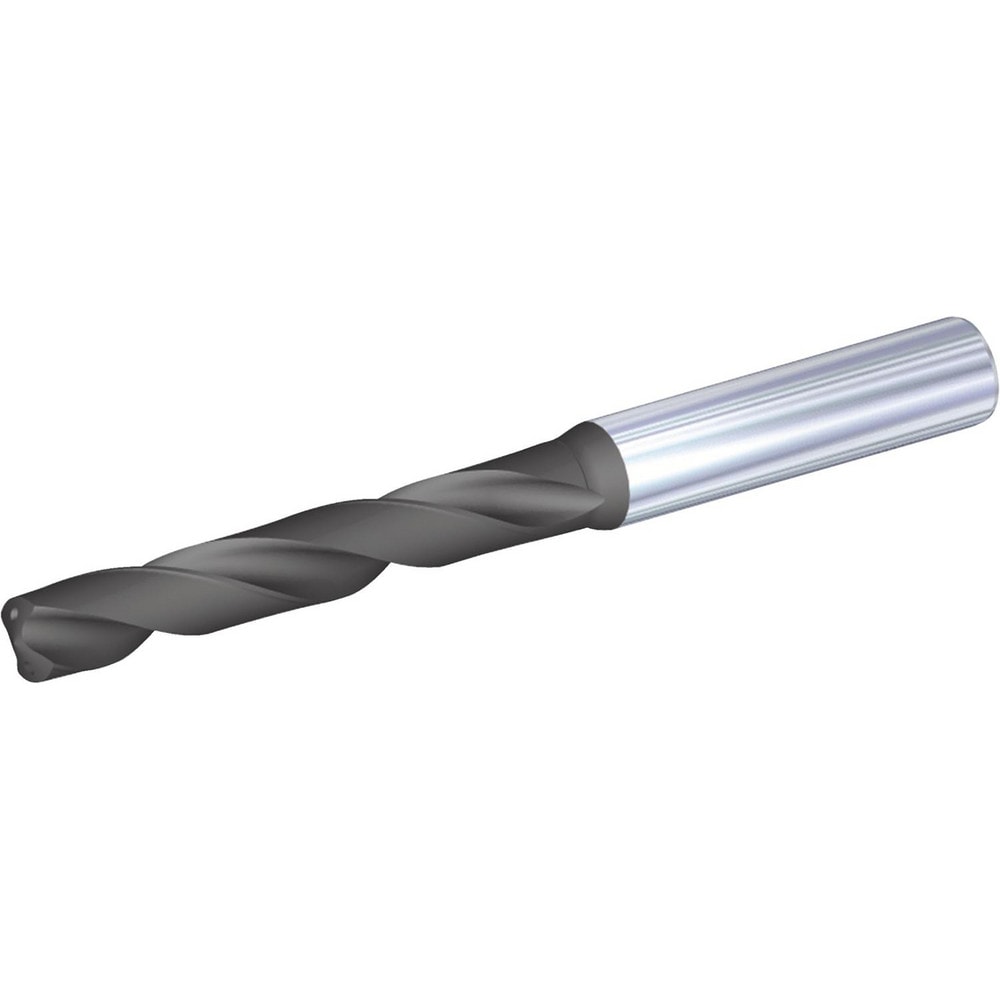

Brand: Widia / Part #: 4162996
Item #: 99824336
Brand: Widia
Model #: 4162996
Product Specifications
| Drill Bit Size (mm) | 4.00 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiAlN |
| Drill Point Angle (Degrees) | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 74.0000 |
| Flute Length (mm) | 36.00 |
| Series | TDS402 |
| Tool Application | Drilling |
| Flute Length x Diamter Ratio | 7 |
| Flute By Diameter Ratio | 7xD |
| Shank Diameter (mm) | 6.0000 |
| Maximum Drilling Depth (mm) | 29.00 |
| Shank Length (mm) | 36.000 |
| Number of Flats | 2 |
| Drill Point Length (mm) | 0.66 |
| Drill Bit Diameter Tolerance | 0.004000 to 0.016000 mm |
| Tool Performance | High Performance |
| Double Margin | Yes |
| Drill Bit Grade | WP20PD |
| Material Grade | WP20PD |
