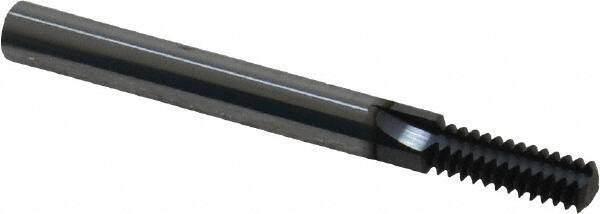

Scientific Cutting Tools - M8x1.25 Thread, 1/4" Shank Diam, TiAlN Coating, Solid Carbide Straight Flute Thread Mill - 3 Flutes, 2-1/2" OAL, M8 Min Noml Diamter
Item #: 60024247
Brand: Scientific Cutting Tools
Model #: TM8-1.25MMA
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and commonly used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Pitch (mm) | 1.25 |
| Thread Size (mm) | M8x1.25 |
| Minimum Nominal Diameter (mm) | M8 |
| Material | Solid Carbide |
| Thread Type | Internal |
| Shank Diameter (Inch) | 1/4 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.2350 |
| Finish/Coating | TiAlN |
| Length of Cut (Decimal Inch) | 0.6600 |
| Thread Standard | Metric Coarse |
| Through Coolant | NonThrough Coolant |
| Overall Length (Inch) | 2-1/2 |
| Material Grade | Submicron |
| Tolerance (Decimal Inch) | ±0.0002 |
| Staggered Tooth | No |
