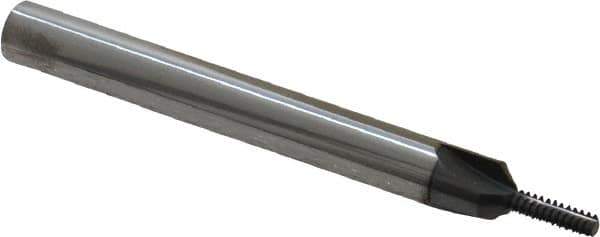

Scientific Cutting Tools - M4x0.70 Thread, 1/4" Shank Diam, TiN Coating, Solid Carbide Straight Flute Thread Mill - 3 Flutes, 2-1/2" OAL, M4 Min Noml Diamter
Item #: 60024122
Brand: Scientific Cutting Tools
Model #: TM 4-.7MM TIN/C
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium nitride (TiN) is a multi-purpose coating that increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Pitch (mm) | 0.70 |
| Thread Size (mm) | M4x0.70 |
| Minimum Nominal Diameter (mm) | M4 |
| Material | Solid Carbide |
| Thread Type | Internal |
| Shank Diameter (Inch) | 1/4 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.1100 |
| Finish/Coating | TiN |
| Length of Cut (Decimal Inch) | 0.3420 |
| Thread Standard | Metric Coarse |
| Through Coolant | NonThrough Coolant |
| Overall Length (Inch) | 2-1/2 |
| Material Grade | Submicron |
| Tolerance (Decimal Inch) | ±0.0002 |
| Staggered Tooth | No |
