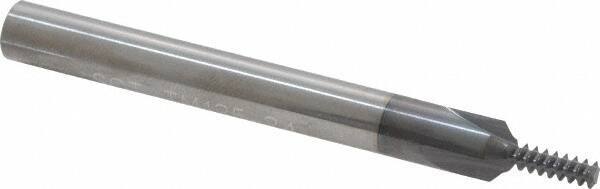

Scientific Cutting Tools - #10-24 Thread, 1/4" Shank Diam, TiAlN Coating, Solid Carbide Straight Flute Thread Mill - 3 Flutes, 2-1/2" OAL, #8 Min Noml Diameter
Item #: 60020005
Brand: Scientific Cutting Tools
Model #: TM125-24N
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and commonly used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Threads Per Inch | 24 |
| Thread Size (Inch) | #10-24 |
| Minimum Nominal Diameter (Inch) | #8 |
| Material | Solid Carbide |
| Thread Type | Internal |
| Shank Diameter (Inch) | 1/4 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.1250 |
| Cutting Diameter (Inch) | 1/8 |
| Finish/Coating | TiAlN |
| Length of Cut (Decimal Inch) | 0.3500 |
| Thread Standard | UNC |
| Through Coolant | NonThrough Coolant |
| Overall Length (Inch) | 2-1/2 |
| Material Grade | Submicron |
| Tolerance (Decimal Inch) | ±0.0005 |
| Staggered Tooth | No |
