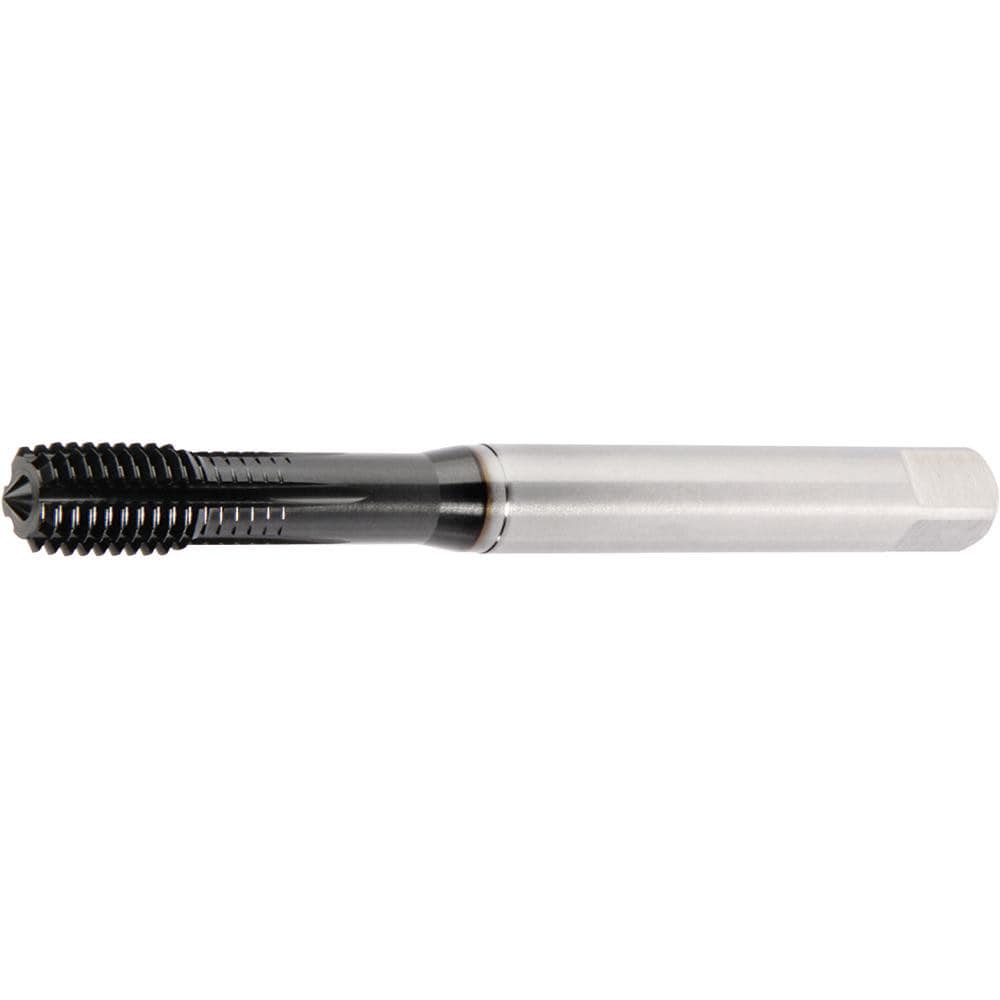

Brand: Widia / Part #: 4154671
Item #: 97551303
Brand: Widia
Model #: 4154671
Product Specifications
| Thread Size (mm) | M3x0.5 |
| Overall Length (mm) | 56.0000 |
| Chamfer | Semi-Bottoming |
| Coating/Finish | DLC |
| Thread Pitch (mm) | 0.50 |
| Thread Standard | Metric |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (mm) | 6.00 |
| Thread Depth (mm) | 18.00 |
| Thread Depth | 18.0000 |
| Shank Diameter (mm) | 3.5000 |
| Neck Length | 12.00 |
| Square Length (mm) | 6.00 |
| Material Application | Non-Ferrous Metals |
| Application | Metal |
| Series | GT22 |
| Tap Type | Blind |
| Tapping Depth (mm) | 18.00 |
| Shank Length (mm) | 38.000 |
| Square Size (mm) | 2.70 |
| Threads per Inch | 51 |
| Class Of Fit | 6HX |
| Coolant Through | No |
