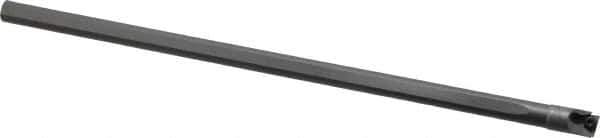

Kennametal - 0.438" Min Bore Diam, 10" OAL, 3/8" Shank Diam, QCBI Indexable Boring Bar - 3-3/4" Max Bore Depth, TP.. Insert, Screw Holding Method
Item #: 59870113
Brand: Kennametal
Model #: 1950413
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | QCBI |
| Series | Q |
| Minimum Bore Diameter (Decimal Inch) | 0.4380 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Inch) | 3-3/4 |
| Overall Length (Inch) | 10 |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | TP.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 0.2210 |
| Insert Thickness (Decimal Inch) | 0.0960 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | 5 |
| Coolant Hole Diameter (Decimal Inch) | 0.1250 |
| Complete Insert Compatibility | TPCB 220.5; TPCB 220.5 2; TPCB 221; TPCB 2200; TPCB 2200-2; TPCB 221-2; TPCB 222; TPCB 222-2; TPCG 220.5; TPCG 221; TPCG 222; TPCH 220.5; TPCH 221; TPGT 220.5; TPGT 221; TPMT 220.5; TPMT 221 |
| Toolholder Material | Carbide (Shank), Steel (Head) |
