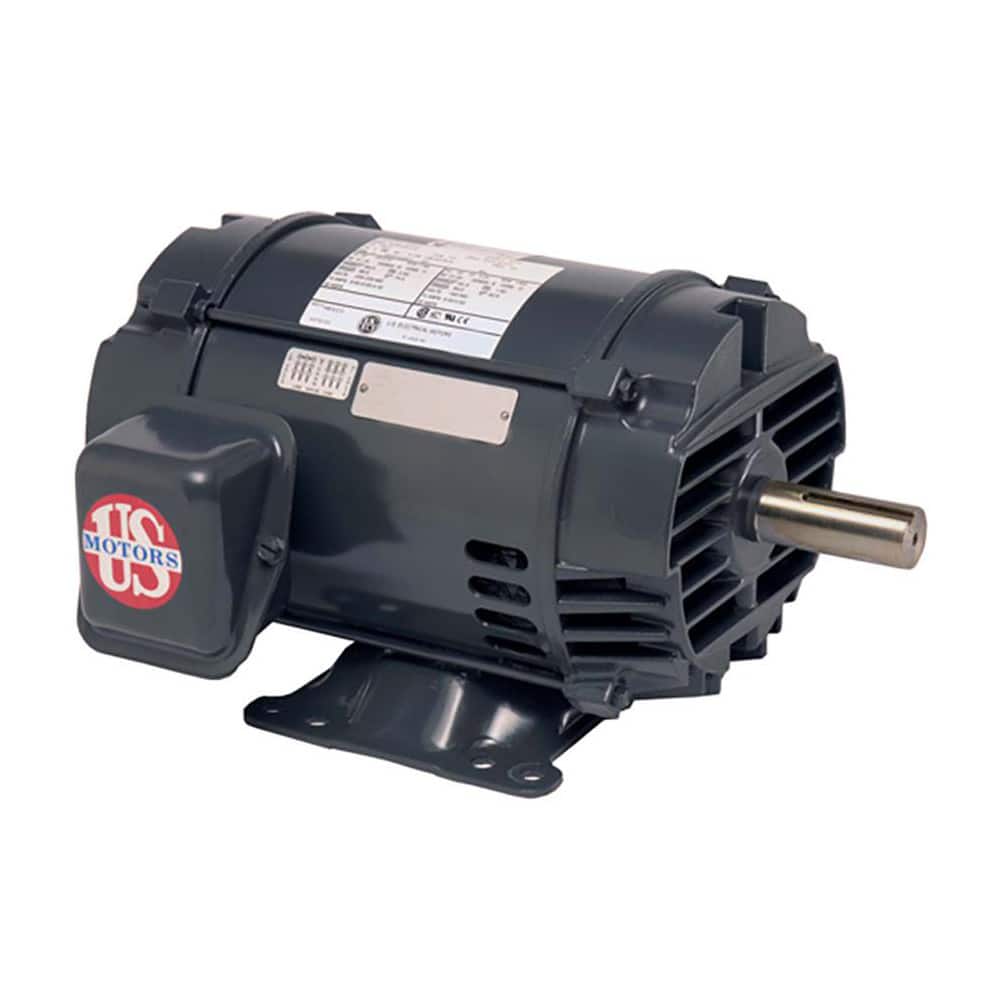

1.5 hp, TEFC Enclosure, No Thermal Protection, 1750, 1430 RPM, 208-230/460 & 190/380 Volt, 60 Hz, Three Phase Premium Efficient Motor Size 145 Frame, Horizontal-Footed Mount, 1 Speed, Sealed Ball Bearings, 4.4-4.2/2.1 Full Load Amps, F Class Insulation
Item #: 59778373
Brand: US Motors
Model #: D32P2D
Product Specifications
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Motor Design | 3-Phase |
| Horsepower | 1-1/2 HP |
| Thermal Protection Rating | None |
| Enclosure Style | TEFC |
| Name Plate RPMs | 1750, 1430 |
| Voltage | 208-230/460 & 190/380 |
| Nameplate Rpm | 1750 RPM |
| Frequency Hz | 60 Hz; 60 |
| Frame Size | 145 |
| Mount Type | Horizontal-Footed |
| Number of Speeds | 1 |
| Bearing Type | Sealed Ball |
| Number Of Phases | 1 |
| Application | General Equipment |
| Full Load Amperage | 4.4-4.2/2.1 |
| Service Factor Rating | 1.0 |
| Applications | General Equipment |
| Insulation Class | F |
| Frame Material | Rolled Steel |
| Service Factor Rating | 1 |
| Phase | 3 |
| PSC Code | 6105 |
