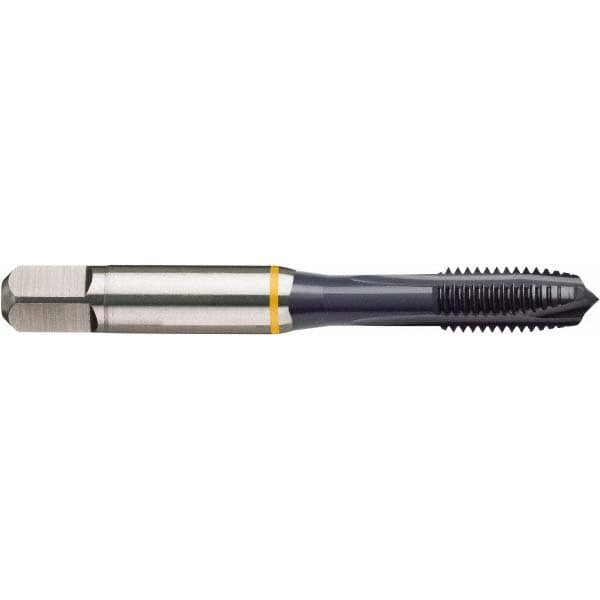

Spiral Point Tap: #8-32 UNC, 3 Flutes, Plug Chamfer, 2B/3B Class of Fit, HSS-E Cobalt, Ignator Coated
Item #: 04701462
Brand: Guhring
Model #: 9048855041660
Product Specifications
| Thread Size (Inch) | #8-32 |
| Thread Standard | UNC |
| Chamfer | Plug |
| Material | HSS-E Cobalt |
| Thread Limit | H3/H4 |
| Class Of Fit | 2B/3B |
| Coating/Finish | Ignator |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Material Application | Steel |
| Oversize | No |
| Interrupted Thread | No |
| Threads per Inch | 32 |
| Overall Length (Inch) | 2-1/8 |
| Thread Pitch (Decimal Inch) | 0.0313 |
| Overall Length (Decimal Inch) | 2.13 |
| Thread Length (Decimal Inch) | 0.5120 |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Application | Through-Hole Threading |
| Neck Length (Decimal Inch) | 0.3150 |
| Measurement Type | Decimal Inch |
| Series | 4885 |
| Style | Spiral Point |
| UNSPSC Code | 23241600 |
