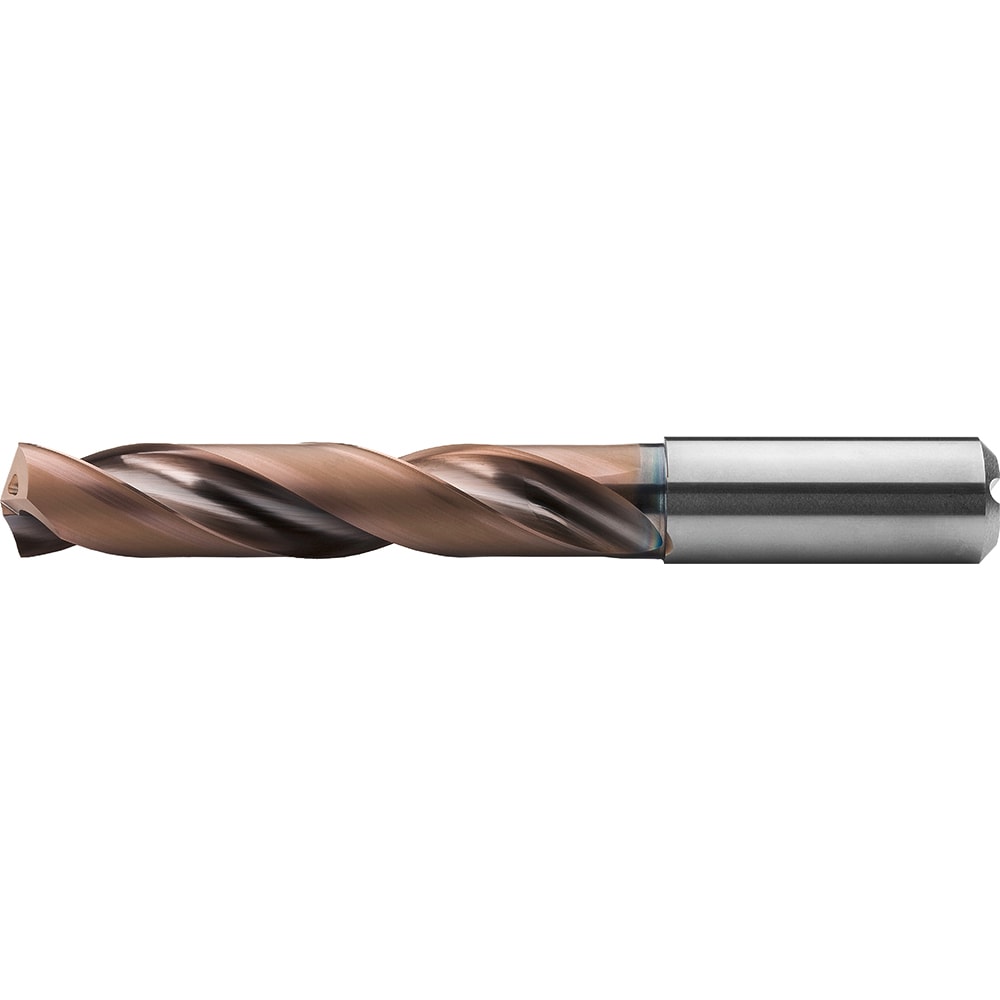

Extra Length Drill Bit: 0.1575", 140 °, Carbide
Item #: 04974184
Brand: Mitsubishi
Model #: 555137
Product Specifications
| Drill Bit Size (mm) | 4.00 |
| Overall Length (mm) | 78.7000 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 30.70 |
| Point Type | X-Thinning |
| Series | MMS |
| Cutting Direction | Right Hand |
| Tool Application | Drilling; Cross Hole; Stack Drilling |
| Spiral Type | Right Hand |
| Number Of Flutes | 2 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Drill Bit Grade | High Precision; High Performance |
| Drill Bit Size (Decimal Inch) | 0.1575 |
| Drill Point Length (mm) | 0.70 |
| Drill Point Length (Decimal Inch) | 0.0276 |
| Overall Length (Decimal Inch) | 3.0984 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.0000 |
| Shank Length (Decimal Inch) | 1.8504 |
| Shank Length (mm) | 47.000 |
| Flute Length (Decimal Inch) | 1.2087 |
| Flute By Diameter Ratio | 5xD |
| Maximum Drilling Depth (Decimal Inch) | 0.8150 |
| Maximum Drilling Depth (mm) | 20.70 |
| Specification Designation | ISO |
| UNSPSC Code | 23241637 |
