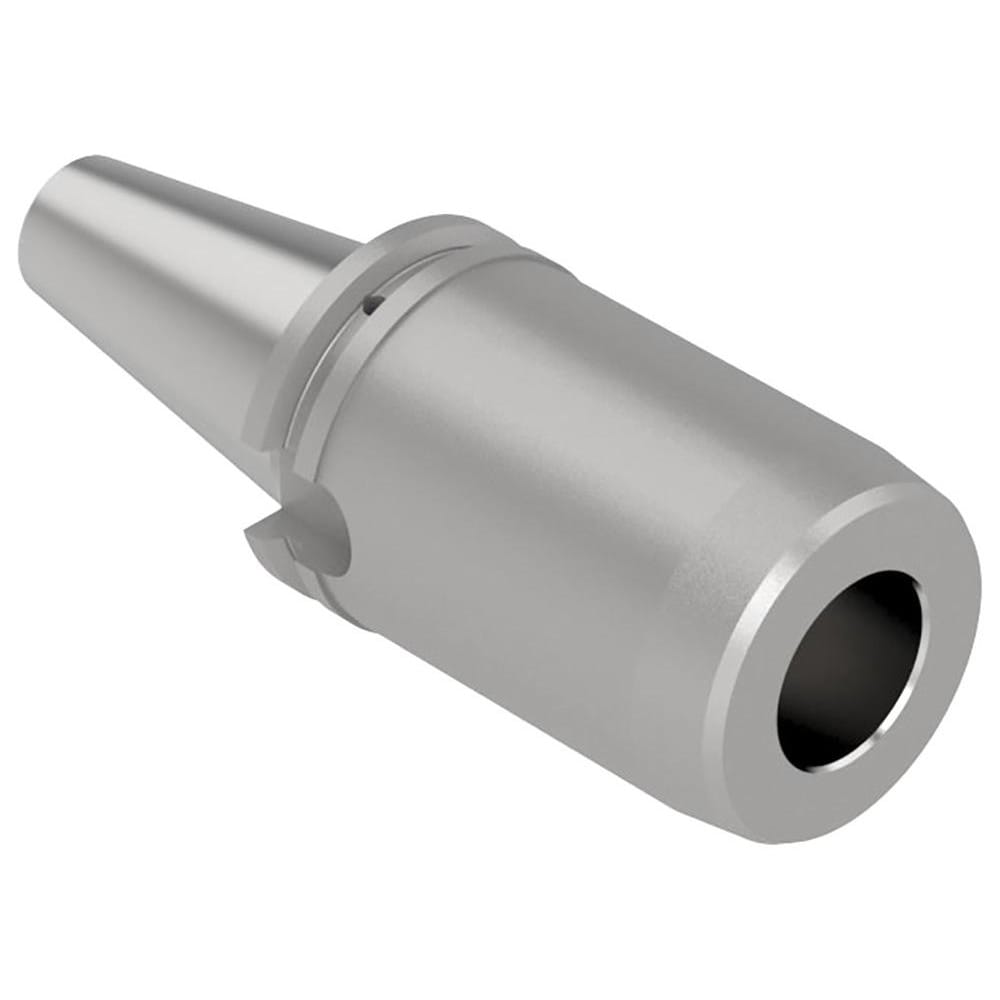

Hydraulic Tool Chuck: CAT40 Taper Shank, 1-1/4" Hole
Item #: 74008756
Brand: Allied Machine and Engineering
Model #: HYD-CV40I1250
Product Specifications
| Shank Type | Taper |
| Taper Size | CAT40 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Decimal Inch) | 1.7500 |
| Shank Diameter (mm) | 44.4500 |
| Shank Diameter (Inch) | 1-3/4 |
| Nose Diameter | 1-31/32 |
| Nose Diameter (Mm) ( - 2 Decimals) | 49.62 |
| Projection (mm) | 101.600 |
| Projection | 4 |
| Clamping Depth (mm) | 60.50 |
| Clamping Depth (Decimal Inch) | 2.3819 |
| Balanced To Rpm | 25000 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 6.6870 |
| Overall Length (mm) | 169.8500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 31.75 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.9535 |
| Projection (Decimal Inch) | 4.0000 |
| UNSPSC Code | 27112800 |
| Shank Type | Taper |
| Taper Size | CAT40 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Decimal Inch) | 1.7500 |
| Shank Diameter (mm) | 44.4500 |
| Shank Diameter (Inch) | 1-3/4 |
| Nose Diameter | 1-31/32 |
| Nose Diameter (Mm) ( - 2 Decimals) | 49.62 |
| Projection (mm) | 101.600 |
| Projection | 4 |
| Clamping Depth (mm) | 60.50 |
| Clamping Depth (Decimal Inch) | 2.3819 |
| Balanced To Rpm | 25000 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 6.6870 |
| Overall Length (mm) | 169.8500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 31.75 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.9535 |
| Projection (Decimal Inch) | 4.0000 |
| UNSPSC Code | 27112800 |
| MSC Part # | 74008756 |
| Mfr Part # | HYD-CV40I1250 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
