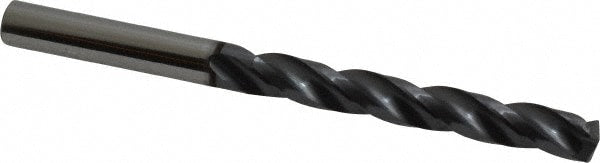

Jobber Drill: 1/4" Dia, 150 deg Point, Solid Carbide
Item #: 87902334
Brand: SGS
Model #: 58061
Product Specifications
| Drill Bit Size (Inch) | 1/4 |
| Drill Bit Size (Decimal Inch) | 0.2500 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 150 |
| Coating/Finish | AlTiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Cast Iron; Steel; Hardened Materials |
| Coolant Through | No |
| Number of Flutes | 3 |
| Flute Length (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (mm) | 82.55 |
| Overall Length (Inch) | 3-1/4 |
| Overall Length (Decimal Inch) | 3.2500 |
| Spiral Type | Regular |
| Flute Length (mm) | 50.80 |
| Flute Length (Decimal Inch) | 2.0000 |
| Proprietary Coating/Finish | Ti-NAMITE-A |
| Series | 103 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 1/4 |
| Maximum Drilling Depth (Decimal Inch) | 1.6094 |
| Maximum Drilling Depth (Inch) | 1-39/64 |
| Shank Length (Decimal Inch) | 1.2500 |
| Shank Length (Inch) | 1-1/4 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Standards | DIN 6539 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Material Grade | Micrograin |
| UNSPSC Code | 23241634 |
| Country of Origin | UNITED STATES |
