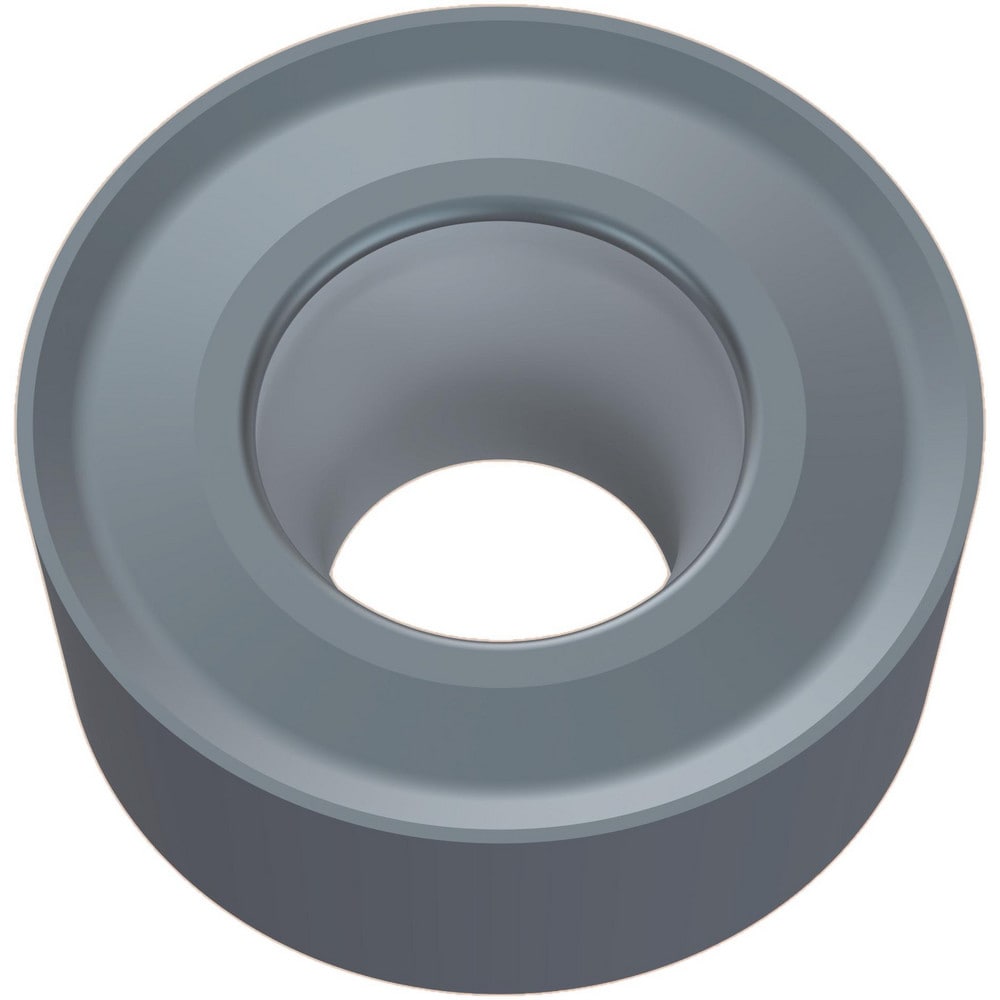

Turning Insert: RCMT10T3M0 MP9005, Carbide
Item #: 03204997
Brand: Mitsubishi
Model #: 10614938
Product Specifications
| ANSI Insert Code | RCMT10T3M0 |
| ISO Insert Code | RCMT10T3M0 |
| Relief Angle | 7 |
| Insert Style | RCMT |
| Corner Radius (mm) | 5.00 |
| Manufacturer Grade | MP9005 |
| Coating/Finish | PVD |
| Insert Hand | Neutral |
| Insert Thickness | 2.50 |
| Inscribed Circle (Decimal Inch) | 0.3940 |
| Inscribed Circle (mm) | 10.00 |
| Insert Material | Carbide |
| Insert Shape | R - Round |
| Chip Breaker Operation | Medium Machining |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Insert Shape Code | R |
| Clearance Code | C |
| Tolerance Code | M |
| Primary Workpiece Material Code | S |
| Chip Breaker | MO |
| ANSI Size Code | 10T3M0 |
| ISO Size Code | 10T3M0 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 10 |
