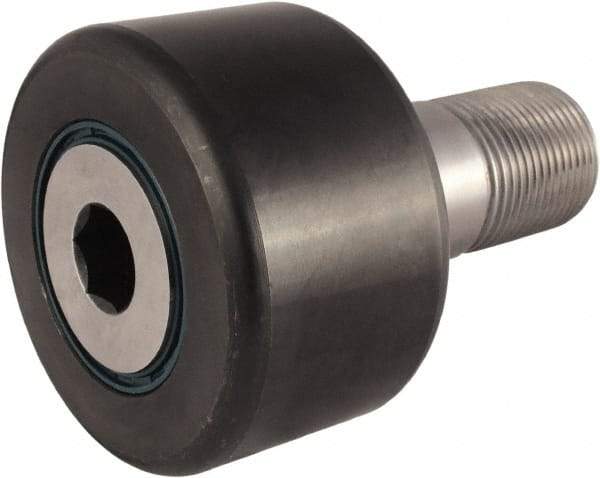

RBC Bearings - 3" Roller Diam x 1-3/4" Width, 1-1/4" Stud Diam x 2-1/2" Length, Sealed Stud Cam Follower with Hex - Carbon Steel, 1-1/4" Thread Length, 1-1/4 - 12 Thread, 4-9/32" OAL, 28,900 Lb Dynamic Cap, 39,100 Lb Static Cap
Item #: 59168310
Brand: RBC Bearings
Model #: RBC3
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Sealed Stud Cam Follower with Hex |
| Roller Diameter (Decimal Inch) | 3.0000 |
| Roller Diameter (Inch) | 3 |
| Roller Width (Decimal Inch) | 1.7500 |
| Stud Diameter (Decimal Inch) | 1.2500 |
| Dynamic Load Capacity (Lb.) | 28900 |
| Static Load Capacity (Pounds) | 39100.00 |
| Length (Decimal Inch) | 4.281 |
| Thread Size | 1-1/4 - 12 |
| Material | Carbon Steel |
| Stud Length (Decimal Inch) | 2.5000 |
| Stud Length (Inch) | 2-1/2 |
| Thread Length (Inch) | 1-1/4 |
| Hex Size (Inch) | 5/8 |
