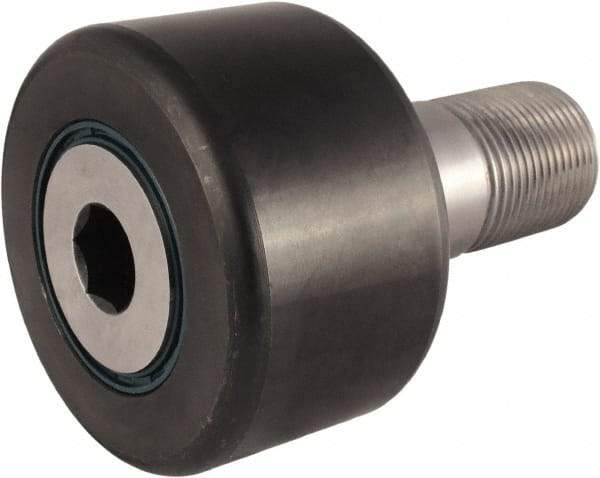

RBC Bearings - 4" Roller Diam x 2-1/4" Width, 1-1/2" Stud Diam x 3-1/2" Length, Sealed Stud Cam Follower with Hex - Carbon Steel, 1-1/2" Thread Length, 1-1/2-12 Thread, 5.781" OAL, 45,600 Lb Dynamic Cap, 68,000 Lb Static Cap
Item #: 59168294
Brand: RBC Bearings
Model #: RBC4
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Sealed Stud Cam Follower with Hex |
| Roller Diameter (Decimal Inch) | 4.0000 |
| Roller Diameter (Inch) | 4 |
| Roller Width (Decimal Inch) | 2.2500 |
| Stud Diameter (Decimal Inch) | 1.5000 |
| Dynamic Load Capacity (Lb.) | 45600 |
| Static Load Capacity (Pounds) | 68000.00 |
| Length (Decimal Inch) | 5.781 |
| Thread Size | 1-1/2-12 |
| Material | Carbon Steel |
| Stud Length (Decimal Inch) | 3.5000 |
| Stud Length (Inch) | 3-1/2 |
| Thread Length (Inch) | 1-1/2 |
| Hex Size (Inch) | 3/4 |
