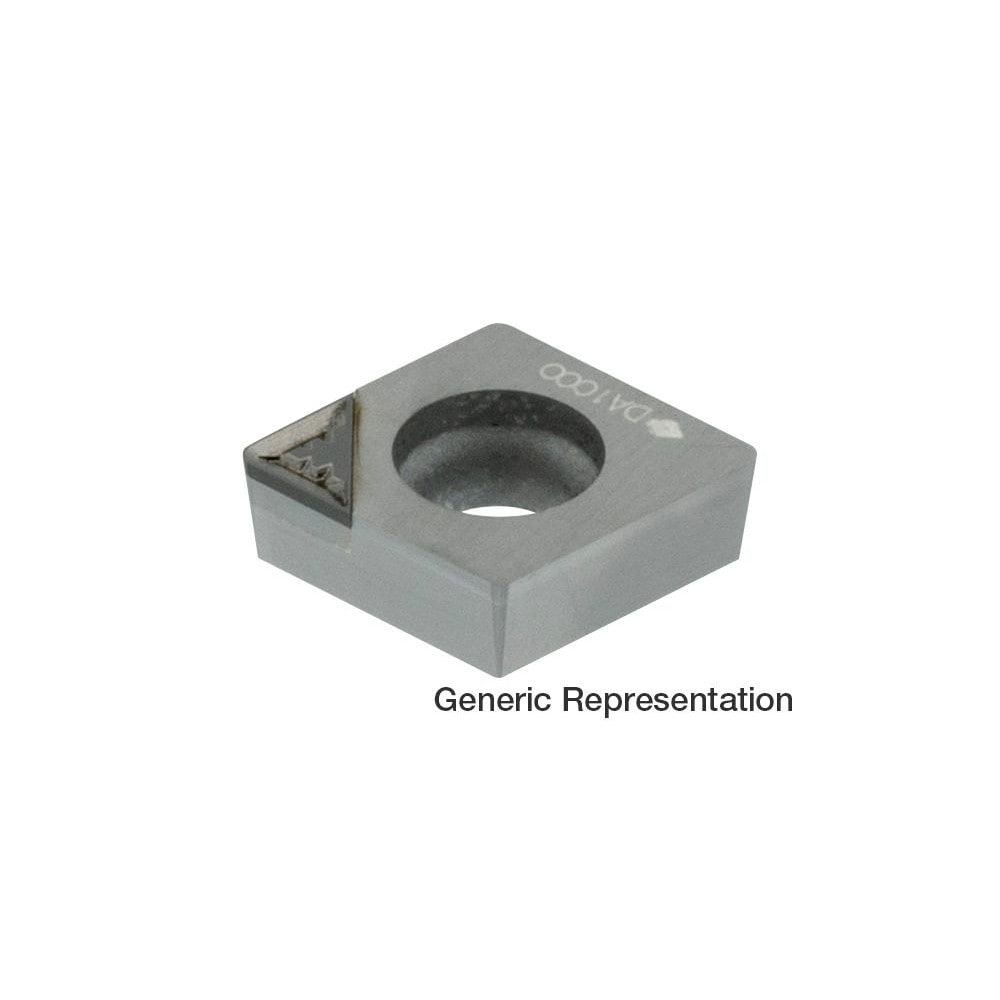

Turning Insert: NF-CCMT21.51LD-DA1000, PCD
Item #: 46923637
Brand: Sumitomo
Model #: 16HQEEW
Product Specifications
| ANSI Insert Code | CCMT21.51 |
| ISO Insert Code | CCMT060204 |
| Relief Angle | 7 |
| Insert Style | CCMT |
| Corner Radius (Inch) | 1/64 |
| Included Angle | 80 |
| Manufacturer Grade | DA1000 |
| Coating/Finish | Bright/Uncoated |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0709 |
| Series | C |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | PCD |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Grade Characteristics | Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Insert Shape Code | C |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Insert Holding Method | Pin; Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | Uncoated |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.1142 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Iso Code | NF-CCMT060204N-LD |
| Standards | ISO 13399; ANSI |
| Manufacturers Catalog Number | NF-CCMT21.51LD-DA1000 |
| Material Grade | PCD |
| Proprietary Coating Designation | Uncoated |
| Chip Breaker | LD |
| Rake Angle | 0 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| ANSI Size Code | 21.51 |
| ISO Size Code | 060204 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.51 |
