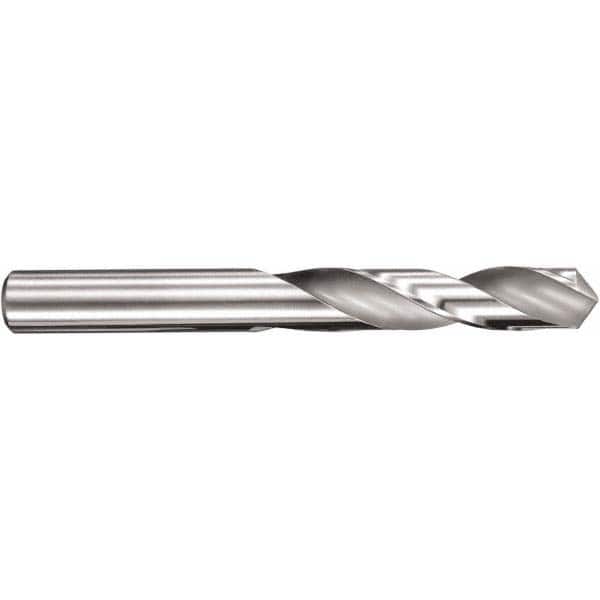

Screw Machine Length Drill Bit: 0.6299″ Dia, 145 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 108M
Item #: 58995234
Brand: SGS
Model #: 68616
Product Specifications
| Drill Bit Size (mm) | 16.00 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 145 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Drill Bit Size (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 115.00 |
| Overall Length (Decimal Inch) | 4.5276 |
| Shank Diameter (mm) | 16.00 |
| Series | 108M |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 1.4961 |
| Maximum Drilling Depth (mm) | 38.00 |
| Shank Length (Decimal Inch) | 2.2441 |
| Shank Length (mm) | 57.00 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.000 to -0.018 mm |
| Flute Length (Decimal Inch) | 2.2835 |
| Flute Length (mm) | 58.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Drill Bit Size Range (mm) | 13.50 to 17.00 |
| Specification Number | DIN 6539 |
| Specification Designation | DIN |
| Material Grade | Micrograin |
 | |
| MSC Part # | 58995234 |
| Mfr Part # | 68616 |
| Country of OriginCountry of Origin is subject to change | UNITED STATES |
