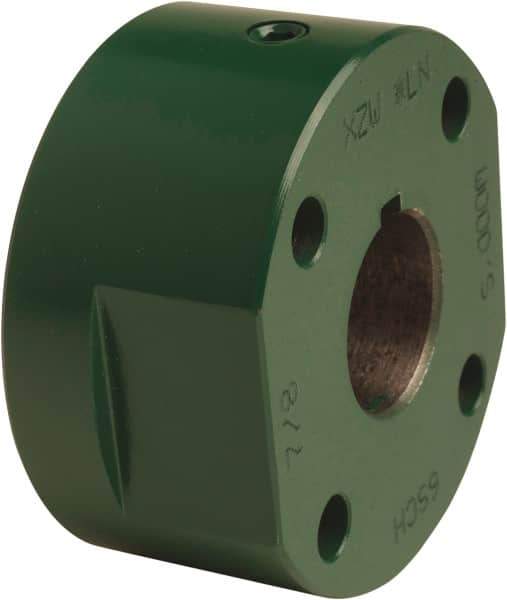

TB Wood's - 1.125 to 2.875" Bore, 5-1/4" Hub, 11 Flexible Coupling Hub - 5-1/4" OD, 2-23/32" OAL, Cast Iron, Order 2 Hubs, 2 Flanges & 1 Sleeve for Complete Coupling
Item #: 58792177
Brand: TB Wood's
Model #: 11SCHMPB
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Hub |
| Bore Diameter (Decimal Inch) | 2.8750 |
| Maximum Bore Diameter (Inch) | 2-7/8 |
| Minimum Bore Diameter (Inch) | 1-1/8 |
| Minimum Bore Diameter (Decimal Inch) | 1.1250 |
| Outside Diameter (Decimal Inch) | 5.2500 |
| Outside Diameter (Inch) | 5-1/4 |
| Overall Length (Inch) | 2-23/32 |
| Overall Length (Decimal Inch) | 2.7188 |
| Material | Cast Iron |
| Special Item Information | For Complete Coupling, order 2 coupling hubs to the correct bore, 2 matching Flanges and 1 Sleeve |
| Coupling Size | 11 |
| Series | Sure-Flex |
| PSC Code | 5340 |
