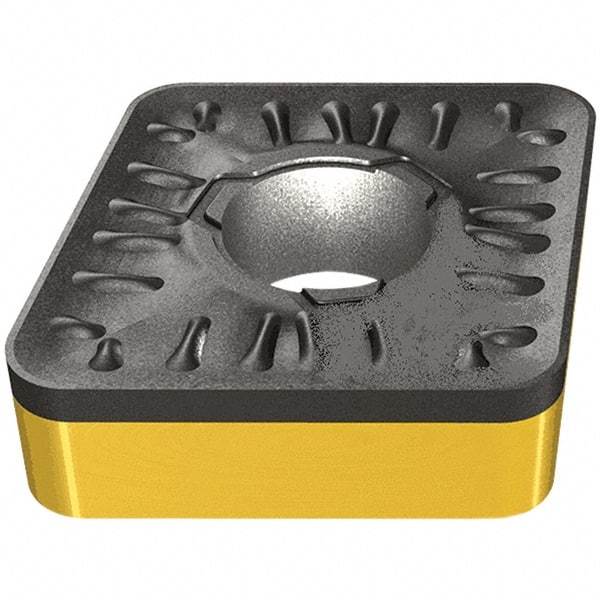

Iscar - CNMM866 R3P Grade IC8150 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Diamond, 25.4mm Inscr Circle, 9.52mm Thick, 2.4mm Corner Radius
Item #: 58780172
Brand: Iscar
Model #: 5566784
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMM |
| Insert Size | 866 |
| Material | Carbide |
| Length (mm) | 25.79 |
| Length (Decimal Inch) | 1.0150 |
| Inscribed Circle (mm) | 25.40 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Thickness (Decimal Inch) | 0.3750 |
| Thickness (mm) | 9.52 |
| Corner Radius (mm) | 2.40 |
| Corner Radius (Decimal Inch) | 0.0940 |
| Manufacturer's Grade | IC8150 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | R3P |
| ISO Number | CNMM 866-R3P |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 5566784 |
| Primary Workpiece Material | K; M; P |
| Secondary Workpiece Material | None |
| Included Angle | 80 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5910 |
| Multi Use Application | Turning |
| Shape | Diamond |
