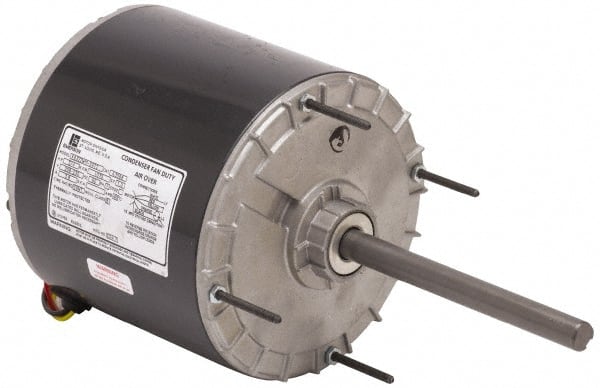

1.5 hp, TEAO Enclosure, Auto Thermal Protection, 1,075 RPM, 208-230/460 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor Size 56Z Frame, Hub/Stud Mount, 1 Speed, Ball Bearings, 8.5-7.6/3.8 Full Load Amps, B Class Insulation, Reversible
Item #: 58757451
Brand: US Motors
Model #: 2204
Product Specifications
| Motor Type | Single Phase Permanent Split Capacitor (PSC) |
| Type of Enclosure | TEAO |
| Horsepower | 1-1/2 |
| Thermal Protection Rating | Auto |
| Enclosure Style | TEAO |
| Name Plate RPMs | 1075 |
| Voltage |
|
| Frequency Hz | 60 Hz; 60 |
| Frame Size | 56Z |
| Mount Type | Hub/Stud |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Application | HVAC |
| Full Load Amperage | 8.5-7.6/3.8 |
| Shaft Diameter X Length | 5/8 x 6 |
| Full Load Efficiency Rating | 79.50 |
| Service Factor Rating | 1.0 |
| Applications | HVAC |
| Insulation Class | B |
| Overall Length (Decimal Inch) | 16.9000 |
| Shaft Diameter x Length | 5/8 x 6 |
| Motor Run Capacitor Micro Farid | 20 |
| Motor Run Capacitor Volts | 370 |
| Service Factor Rating | 1.00 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
