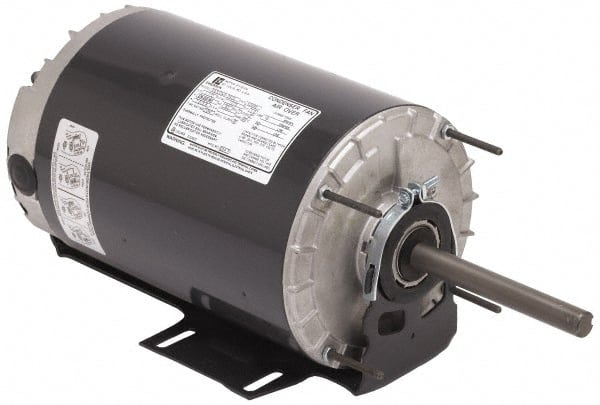

3/4 hp, ODP Enclosure, Auto Thermal Protection, 1,100 RPM, 208-230/460 Volt, 60/50 Hz, Single Phase Permanent Split Capacitor (PSC) Motor Size 56Y Frame, Cradle Mount, 2 Speed, Ball Bearings, 4.8/2.5 Full Load Amps, B Class Insulation, CCW Lead End
Item #: 58757048
Brand: US Motors
Model #: 2193
Product Specifications
| Motor Type | Single Phase Permanent Split Capacitor (PSC) |
| Type of Enclosure | ODP |
| Motor Design | 1-Phase |
| Horsepower | 3/4 |
| Thermal Protection Rating | Auto |
| Enclosure Style | ODP |
| Name Plate RPMs | 1100 |
| Voltage |
|
| Nameplate Rpm | 1100 RPM |
| Frequency Hz | 60/50 Hz; 60/50 |
| Frame Size | 56Y |
| Mount Type | Cradle |
| Number of Speeds | 2 |
| Bearing Type | Ball |
| Number Of Phases | 1 |
| Application | HVAC |
| Full Load Amperage | 4.8/2.5 |
| Shaft Diameter X Length | 5/8 x 4-1/16 |
| Full Load Efficiency Rating | 74.70 |
| Service Factor Rating | 1.0 |
| Applications | HVAC |
| Insulation Class | B |
| Overall Length (Decimal Inch) | 13.1000 |
| Shaft Diameter x Length | 5/8 x 4-1/16 |
| Motor Run Capacitor Micro Farid | 30 |
| Motor Run Capacitor Volts | 440 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CCW Lead End |
| Phase | 1 |
| PSC Code | 6105 |
