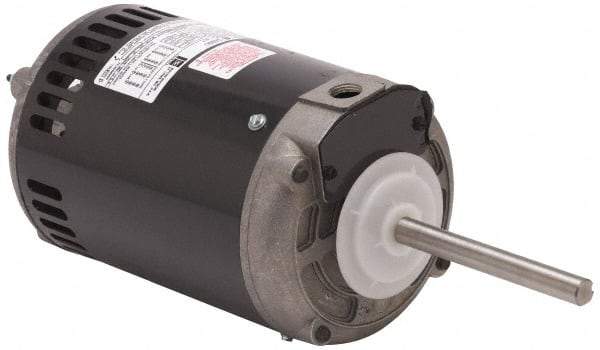

US Motors - 1 hp, OPAO Enclosure, Auto Thermal Protection, 1,140 RPM, 200-230/460 Volt, 60 Hz, Three Phase Standard Efficient Motor - Size 56YZ Frame, Band Mount, 1 Speed, Ball Bearings, 6.0/3.0 Full Load Amps, B Class Insulation, Reversible
Item #: 58756370
Brand: US Motors
Model #: 1816
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Standard Efficient |
| Type of Enclosure | OPAO |
| Horsepower | 1 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1140 |
| Voltage | 200-230/460 |
| Frequency Hz | 60 |
| Frame Size | 56YZ |
| Mount Type | Band |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | HVAC |
| Full Load Amperage | 6.0/3.0 |
| Insulation Class | B |
| Overall Length (Decimal Inch) | 13.6000 |
| Shaft Diameter x Length (Inch) | 5/8 x 3 |
| Full Load Efficiency Rating | 84.70 |
| Service Factor Rating | 1.00 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
