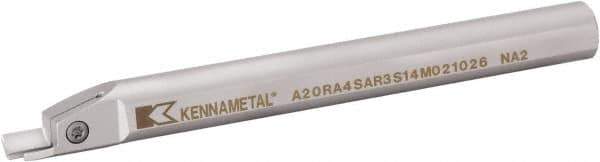

Kennametal - A4SS, Internal, Right Hand, 12mm Max Depth of Cut, 2mm Min Groove Width, Indexable Grooving Tool Holder - A4G0200M2SP02B Insert Compatibility, 20mm Shank Width, 201.45mm OAL, Through Coolant
Item #: 58466798
Brand: Kennametal
Model #: 3871039
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 12.00 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Minimum Groove Width (mm) | 2.00 |
| Overall Length (mm) | 201.45 |
| Overall Length (Decimal Inch) | 7.9311 |
| Toolholder Style | A4SS |
| Insert Compatibility | A4G0200M2SP02B |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | A4 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Grooving; Turning |
| Insert Holding Method | Clamp |
| Insert Seat Size | 2S |
| Minimum Hole Diameter (mm) | 21.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.8268 |
| Maximum Workpiece Diameter (mm) | 23.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 0.9055 |
| Maximum Groove Outside Diameter (mm) | 23.00 |
| Minimum Axial Groove Inside Diameter(mm) | 21.00 |
| Center to Cutting Edge (mm) | 9.24 |
| Center to Cutting Edge (Decimal Inch) | 0.3638 |
| Head Length (mm) | 36.35 |
| Head Length (Decimal Inch) | 1.4311 |
| Shank Length (mm) | 165.10 |
| Shank Length (Decimal Inch) | 6.5000 |
| Complete Insert Compatibility | A4G0200M2SP02B |
