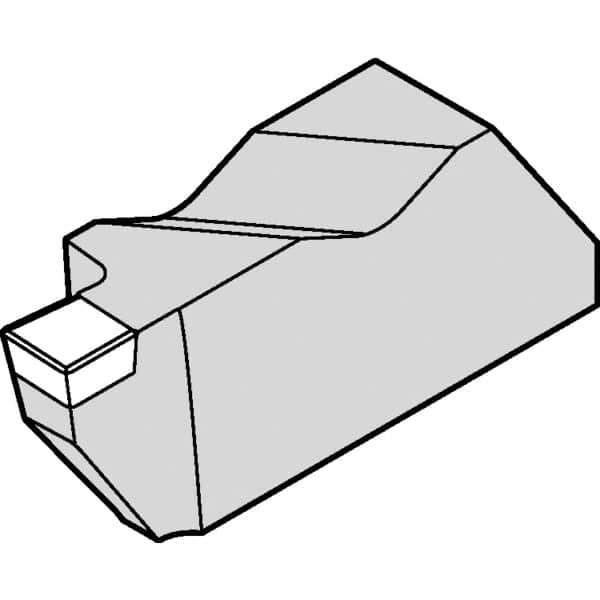

Kennametal - 3M200NG ST Grade KB1630, 2mm Cutting Width PCBN Grooving Insert - 2.39mm Max Depth of Cut, Right Hand, 0.2mm Corner Radius, Uncoated
Item #: 58451808
Brand: Kennametal
Model #: 4169337
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | NG |
| Insert Size | 3M200 |
| Material | PCBN |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 2.39 |
| Maximum Depth of Cut (Decimal Inch) | 0.0940 |
| Manufacturer's Grade | KB1630 |
| Coating | Uncoated |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 8.74 |
| Cutting Height (Decimal Inch) | 0.3441 |
| Insert Seat Size | 3 |
| Chipbreaker | ST |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Overall Length (mm) | 22.52 |
| Overall Length (Decimal Inch) | 0.8867 |
| Series | Top Notch |
| Overall Width (mm) | 4.98 |
| Overall Width (Decimal Inch) | 0.1960 |
| Included Angle | 55 |
